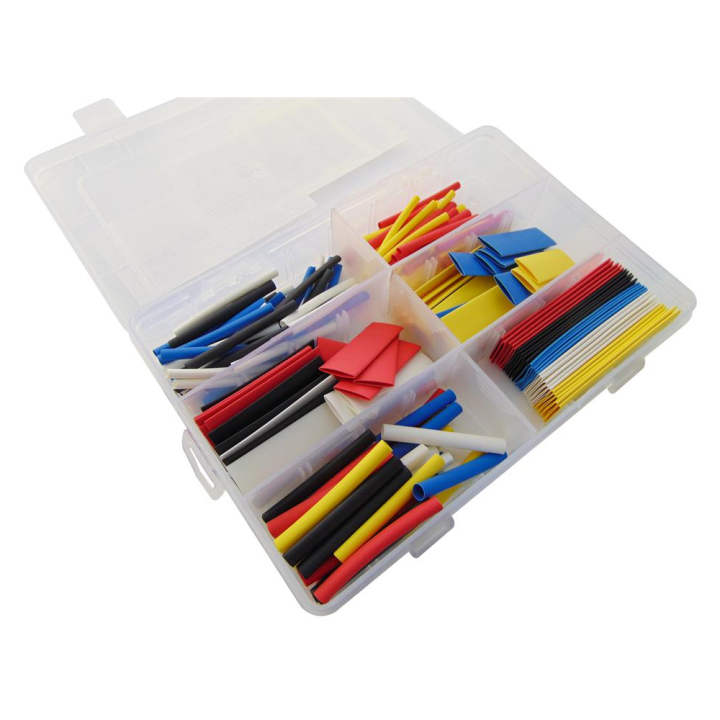

B-EX HEATSHRINK KIT (376 SLEEVES)

B-EX heatshrink kit, 376 sleeves. The PLIOFINE B-EX heat shrinkable sleeves are versatile. It is used for mechanical and electrical protection. A wide range of colours also makes it ideal for cable identification.

Specifications:

• Material: Cross-linked polyolefin
• Operating temperature: -55°C to 135°C
• Longitude change: ±5 %
• Dielectric strength: 20 kV / mm
• Flame resistant: Self-extinguishing VW1 UL224 V0 UL94
• Chemical reaction: Good to excellent according to MIL-DTL-23053/5
• Kit contains:
  • 120 quantity (40 per colour) compromised of:
    • 2.4 mm to 1.2 mm x 45 mm blue B-EX sleeves
    • 2.4 mm to 1.2 mm x 45 mm black B-EX sleeves
    • 2.4 mm to 1.2 mm x 45 mm red B-EX sleeves
  • 125 quantity (25 per colour) compromised of:
    • 3.2 mm to 1.6 mm x 50 mm black B-EX sleeves
    • 3.2 mm to 1.6 mm x 50 mm white B-EX sleeves
    • 3.2 mm to 1.6 mm x 50 mm blue B-EX sleeves
    • 3.2 mm to 1.6 mm x 50 mm yellow B-EX sleeves
    • 3.2 mm to 1.6 mm x 50 mm red B-EX sleeves
  • 51 quantity (17 per colour) compromised of:
    • 4.8 mm to 2.4 mm x 45 mm blue B-EX sleeves
    • 4.8 mm to 2.4 mm x 45 mm yellow B-EX sleeves
    • 4.8 mm to 2.4 mm x 45 mm red B-EX sleeves
  • 36 quantity (12 per colour) compromised of:
    • 6.4 mm to 3.2 mm x 50 mm blue B-EX sleeves
    • 6.4 mm to 3.2 mm x 50 mm yellow B-EX sleeves
    • 6.4 mm to 3.2 mm x 50 mm red B-EX sleeves
  • 18 quantity (9 per colour) compromised of:
    • 9.5 mm to 4.8 mm x 100 mm black B-EX sleeves
    • 9.5 mm to 4.8 mm x 100 mm red B-EX sleeves
  • 14 quantity (7 per colour) compromised of:
    • 12.7 mm to 6.4 mm x 100 mm black B-EX sleeves
    • 12.7 mm to 6.4 mm x 100 mm red B-EX sleeves
  • 12 quantity (6 per colour) compromised of:
    • 19 mm to 9.5 mm x 200 mm black B-EX sleeves
    • 19 mm to 9.5 mm x 200 mm red B-EX sleeves
