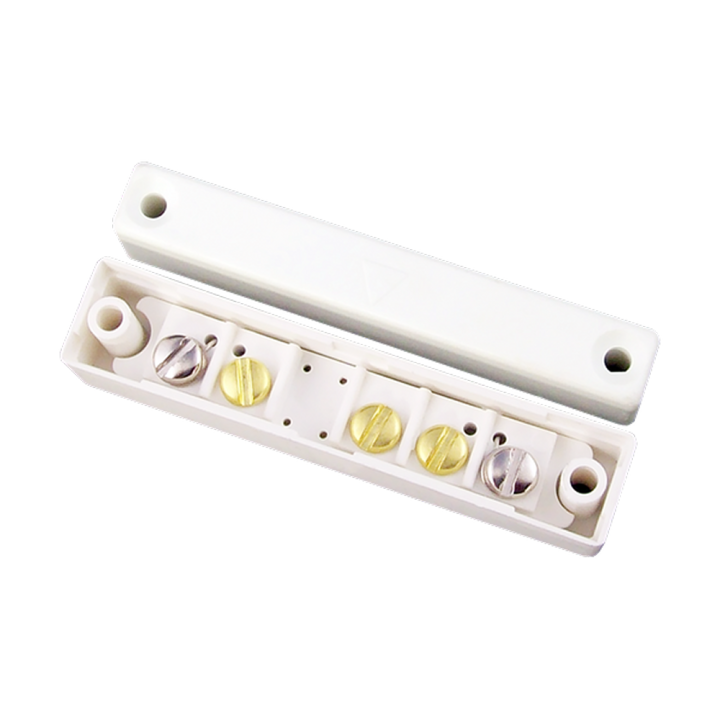

SURFACE ALARM CONTACT

This compact surface mounted magnetic contact can be used in security systems up to and including security grade 1 & environmental class II (for use indoors) as specified in EN50131-1 and is compliant to EN50131-2-6. It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing.

This compact surface mounted magnetic contact can be used in security systems up to and including security grade 1 & environmental class II (for use indoors) as specified in EN50131-1 and is compliant to EN50131-2-6. It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing.

Specifications:

  • Security grade: 1
  • Environmental class: Class II
  • Contact type: Changeover COM/NO/NC
  • Connection type: Wired
  • Max switching current: 500 mA
  • Size: 65 mm x 13 mm x 13 mm
  • Standards: EN50131-1, EN50131-2-6, EN50130-5

  • Reference
    ALACON
