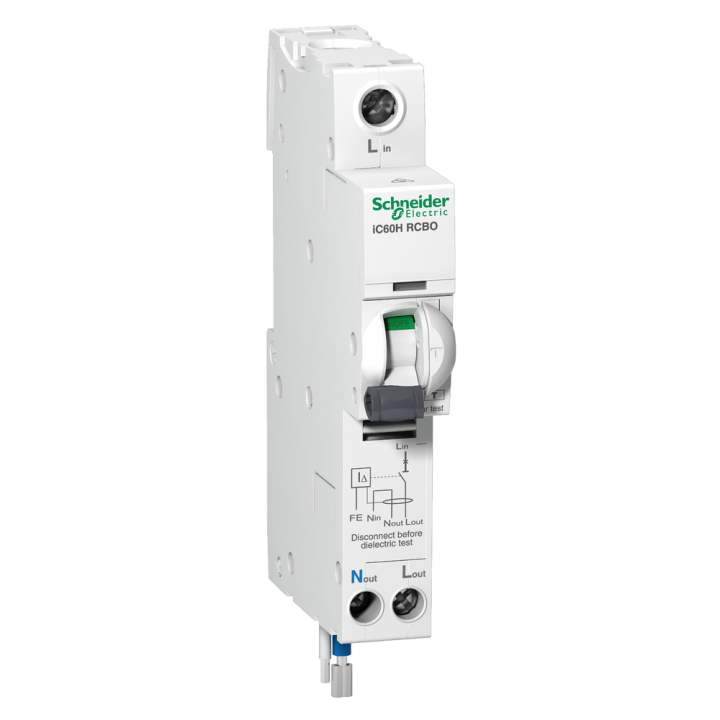

SCHNEIDER A9D11832 32A C RCBO
Schneider Acti 9 iC60H A9D11832 32A 1P+N 30 mA trip RCBO (residual current circuit breaker with overcurrent protection), 10 kA, C type.
The Schneider Acti 9 iC60H A9D11832 is a 32A, 1P+N, C-type RCBO (residual current circuit breaker with overcurrent protection), with a 30 mA trip and a short-circuit capacity of 10 kA.
Specifications:
- Characteristic curve: C
- Rated current: 32A
- Rated residual operating current: 30 mA
- Rated voltage: 240V AC
- Rated frequency: 50 Hz / 60 Hz
- Number of poles: 1P+N
- Breaking capacity: 10 kA
- Operating temperature: -15 °C to 60 °C
- Mounting: DIN rail
- Terminal Capacity: 1.5 mm² to 25 mm²
- Size: 110 mm x 77.5 mm x 18 mm
- Standards: BS EN 61009-1, IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
-
ReferenceMGA9D11832
