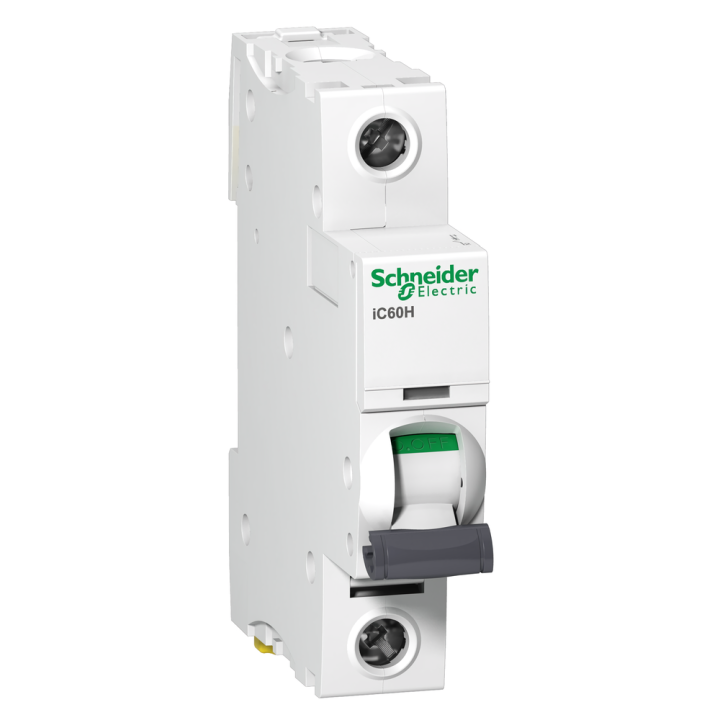

SCHNEIDER A9F84104 SP 4A C MCB
Schneider Acti 9 iC60H A9F84104 4A single-pole miniature circuit breaker (MCB), 10 kA, C type.
The Schneider Acti 9 iC60H A9F84104 is a 4A, single-pole, C-type miniature circuit breaker (MCB) with a short-circuit capacity of 10 kA.
Specifications:
- Characteristic curve: C
- Rated current: 4A
- Rated voltage: 230V AC
- Rated frequency: 50 Hz / 60 Hz
- Number of poles: 1
- Rated short circuit capacity: 10 kA
- Operating temperature: -35 °C to 70 °C
- Mounting: DIN rail
- Terminal capacity: 1 mm² to 25 mm²
- Size: 85 mm x 78.5 mm x 18 mm
- Standards: EN/IEC 60947-2, EN/IEC 60898-1
-
ReferenceMGA9F54104
