SCHNEIDER A9F55363 TP 63A D MCB

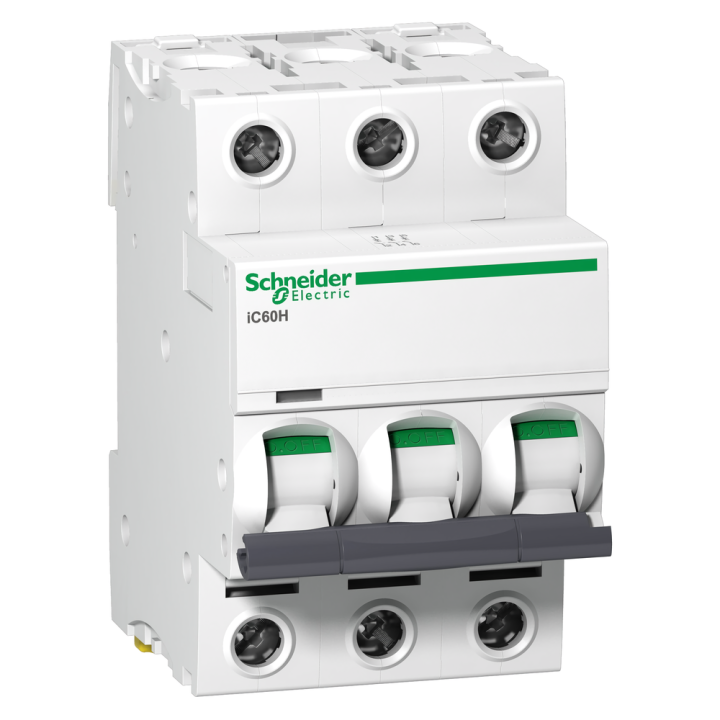

Schneider Acti 9 iC60H A9F55363 63A triple-pole miniature circuit breaker (MCB), 10 kA, D type.
The Schneider Acti 9 iC60H A9F55363 is a 63A, triple-pole, D-type miniature circuit breaker (MCB) with a short-circuit capacity of 10 kA.
Specifications:
- Characteristic curve: D
- Rated current: 63A
- Rated voltage: 400V AC
- Rated frequency: 50 Hz / 60 Hz
- Number of poles: 3
- Rated short circuit capacity: 10 kA
- Operating temperature: -35 °C to 70 °C
- Mounting: DIN rail
- Terminal capacity: 1 mm² to 25 mm²
- Size: 85 mm x 78.5 mm x 54 mm
- Standards: EN/IEC 60947-2, EN/IEC 60898-1
-
ReferenceMGA9F55363
