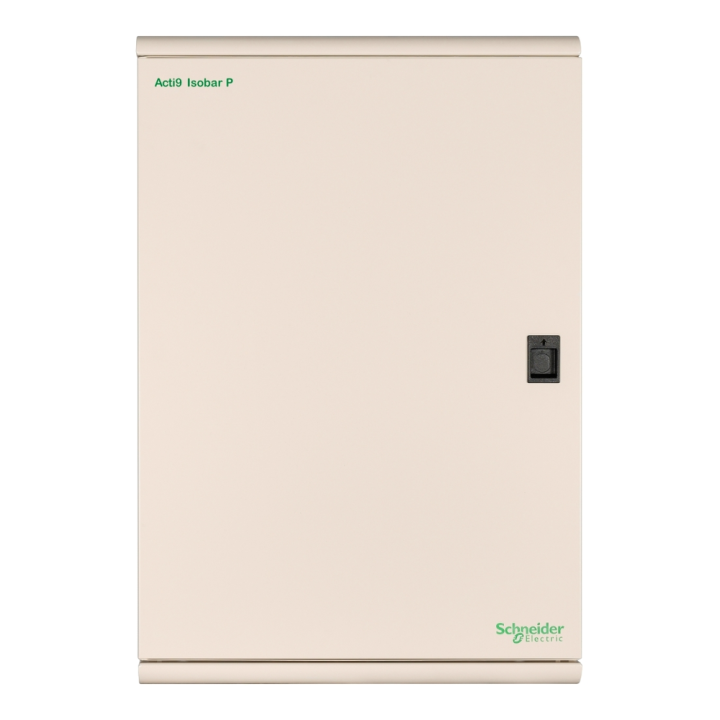

SCHNEIDER SEA9BPN12 12W TP BOARD

Schneider Acti 9 Isobar P B, distribution board, 12-way, 3P + N, for distribution

Features:

• Enclosure type: Standard
• Enclosure mounting: Surface
• Provided equipment: Earth stud, enclosure, door, front cover, pan assembly, neutral terminal block, earth terminal block, blanking plate, removable gland plates
• Enclosure material: Steel
• Colour: Cream (RAL 9001)

Specifications:

• IP degree: IP2x without cover internal conforming to BS EN 60529, IP3x with cover external conforming to BS EN 60529
• IK protection: IK05
• Height: 700 mm
• Width: 470 mm
• Depth: 139 mm
• Net weight: 13.5 kg
• Operating temperature: -35 °C to 70 °C
• Current: 250A
• Voltage: 415V AC
• Number of poles: 12-way
• Poles: 3P + N
• Breaking capacity: 25 kA
• Overvoltage category: IV
• [Ui] rated insulation voltage: 500V
• [Uimp] rated impulse withstand voltage: 6 kV
• Incomer device options: Switch disconnector - 3P + N, switch disconnector - 4P MCCB - 4P, terminal block - 4P, contactor - 4P, RCCB - 4P

Applications:

• Device application: Distribution
