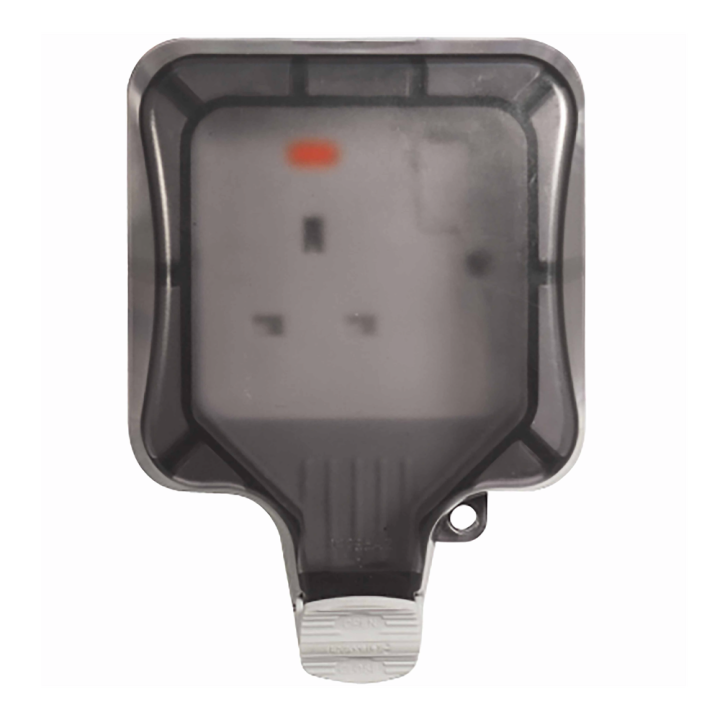

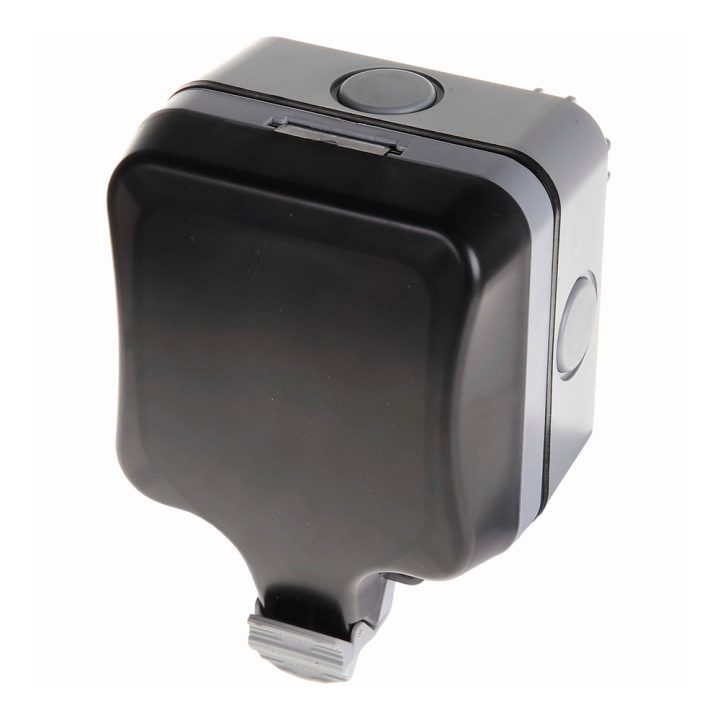

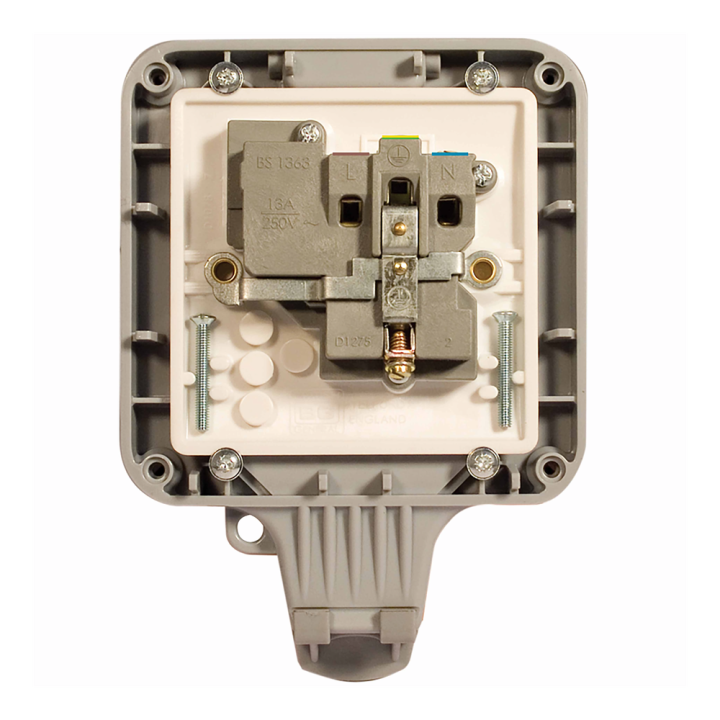

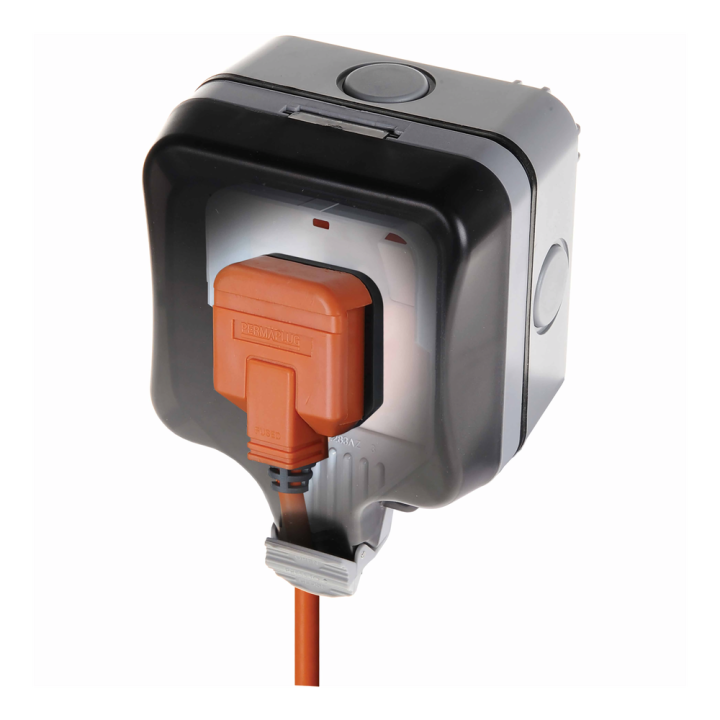

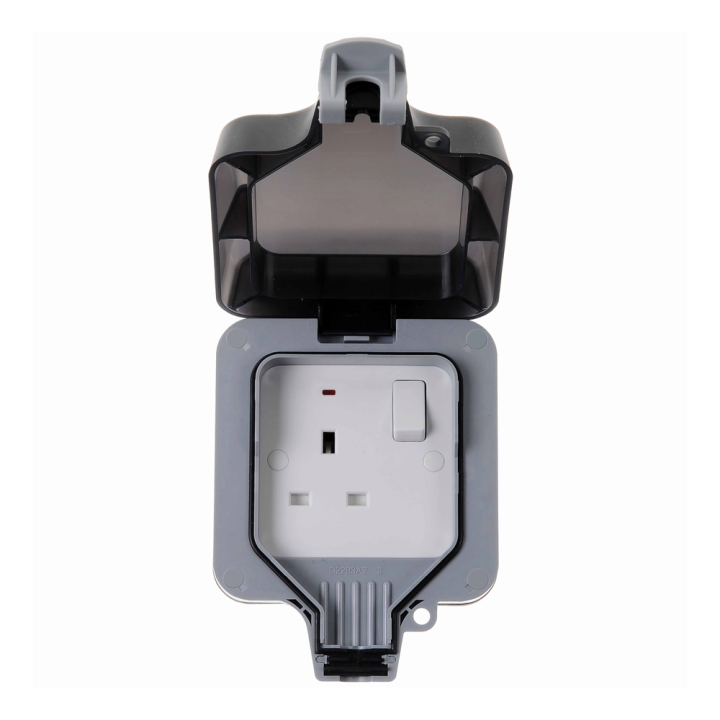

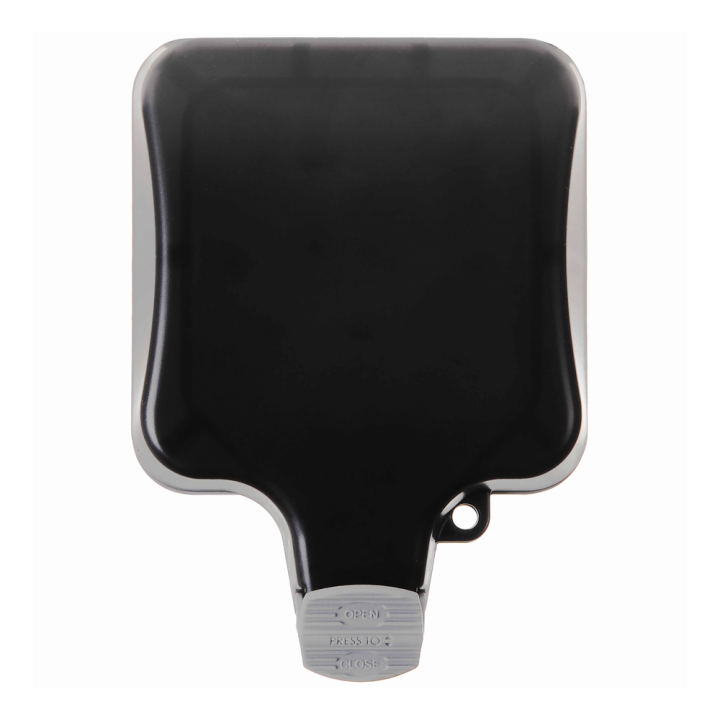

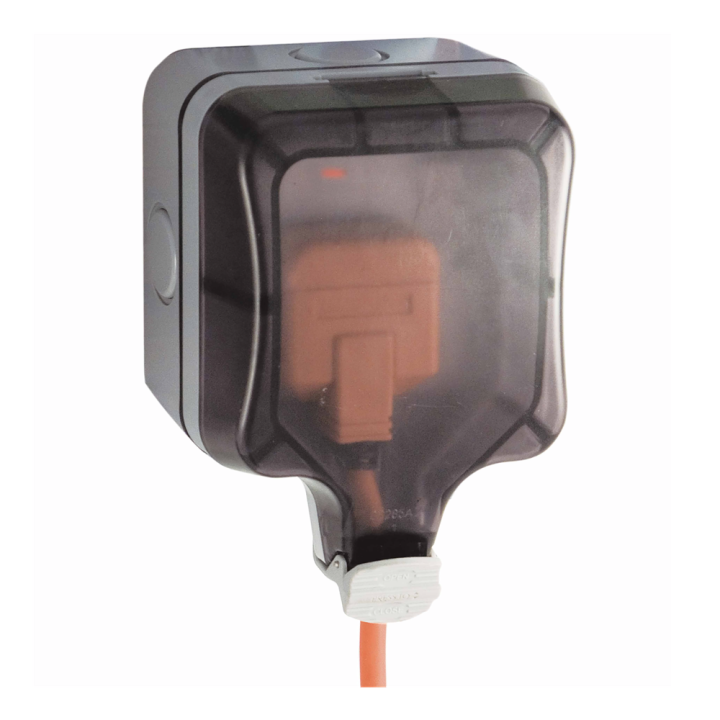

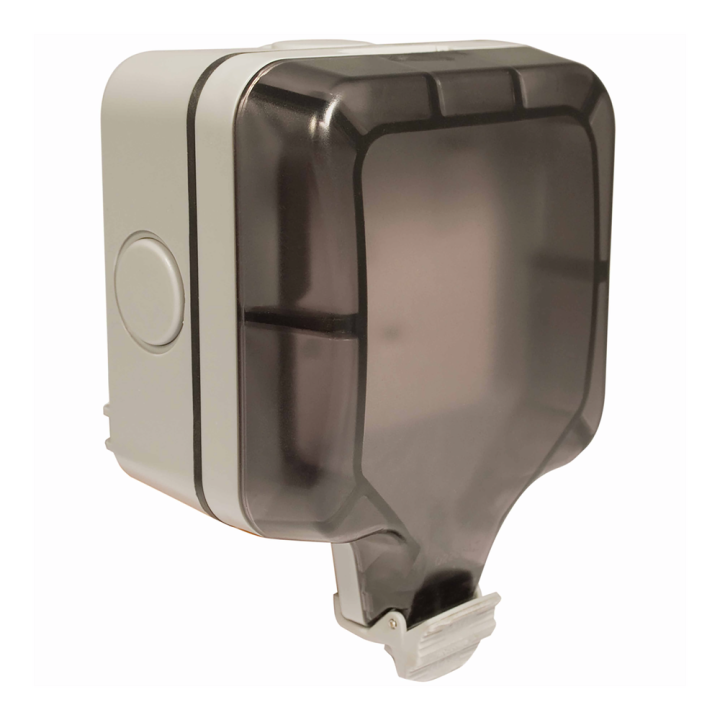

BG WP21 13A 1-GANG WEATHERPROOF SWITCHED SOCKET IP66

The BG WP21-02 is a 13A, single-gang socket outlet inside an IP66 rated mounting box, suitable for protecting a potentially dangerous electricity supply in the most arduous of conditions.

Features:

• 13A, one-gang
• Stylish modern profile
• Colour-coded terminals with backed out captive screws for easy installation
• Covers to seal the fixing screws
• Two earth terminals in socket
• One earth terminal in mounting box
• All cable entries in the four sides have removable blanking caps
• Housing will accept accessories from the BG Nexus range
• Cover will stay open to allow for easy access to sockets
• See-through cover allows status of switches to be seen

Specifications:

• Rating: 13A 250V~
• Switch type: Double-pole
• Contact gap: 3 mm minimum
• Terminal capacity: 3 x 2.5 mm², 3 x 4 mm², 2 x 6 mm²
• IP rating: IP66
• Number of cable entries: 5 x 20 mm, one in each of three sides and two in the remaining side, one drill-out entry 20 mm / 25 mm in rear face
• Size: 111 mm x 154 mm x 80 mm
• Standards: BS 1363 Part 2
