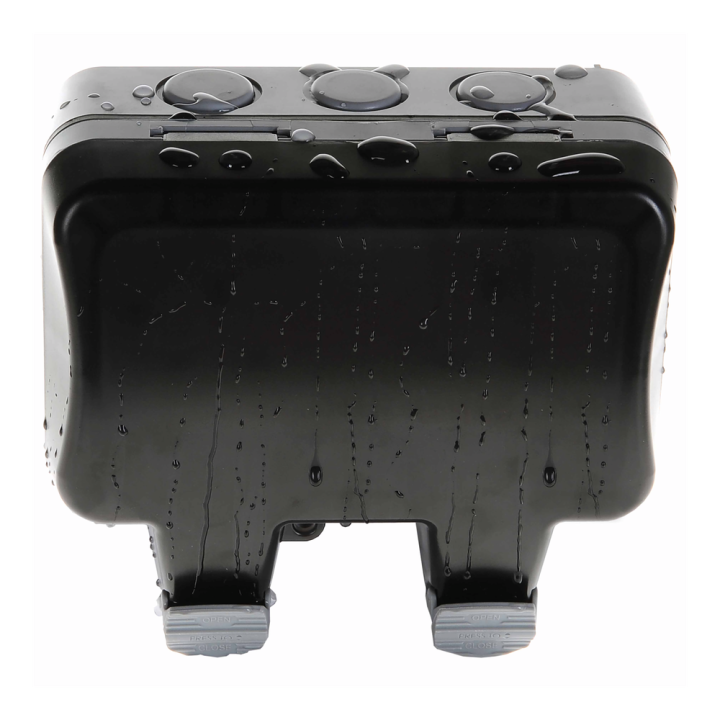

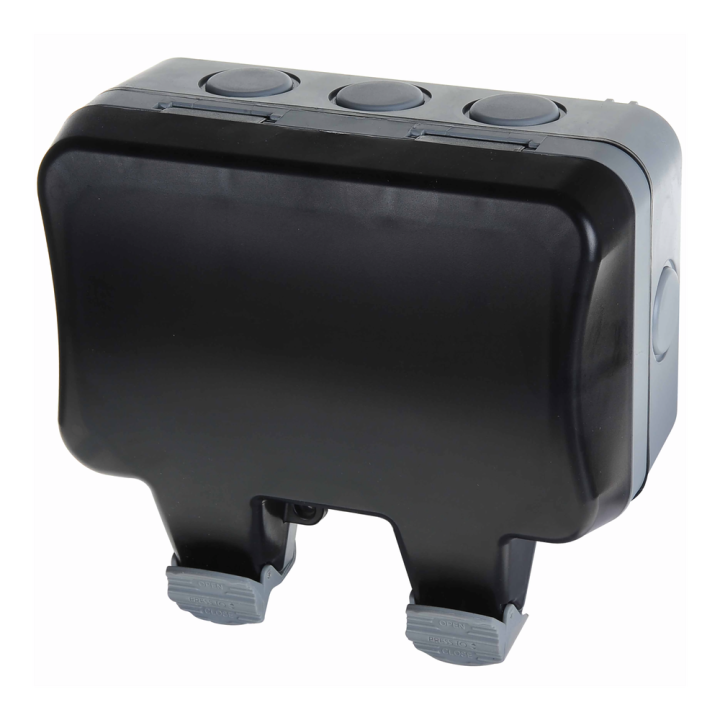

BG WP22 13A 2-GANG WEATHERPROOF RCD SWITCHED SOCKET IP66

The BG WP22RCD-01 is a 13A, double-gang socket outlet with residual current device (RCD) inside an IP66 rated mounting box, suitable for protecting a potentially dangerous electricity supply in the most arduous of conditions.

Features:

• 13A, two-gang
• Stylish modern profile
• Colour-coded terminals with backed out captive screws for easy installation
• Covers to seal the fixing screws
• Two earth terminals in socket
• One earth terminal in mounting box
• All cable entries in the four sides have removable blanking caps
• Housing will accept accessories from the BG Nexus range

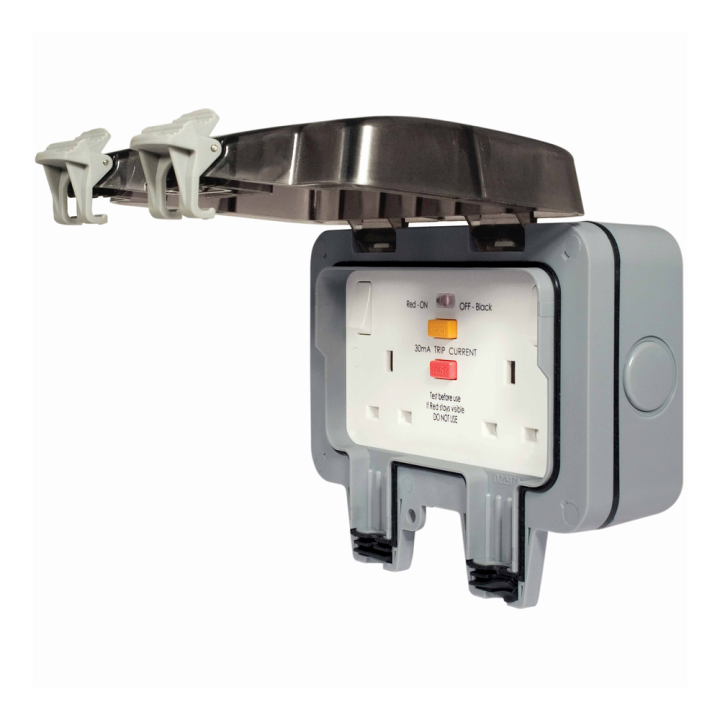

• Cover will stay open to allow for easy access to sockets

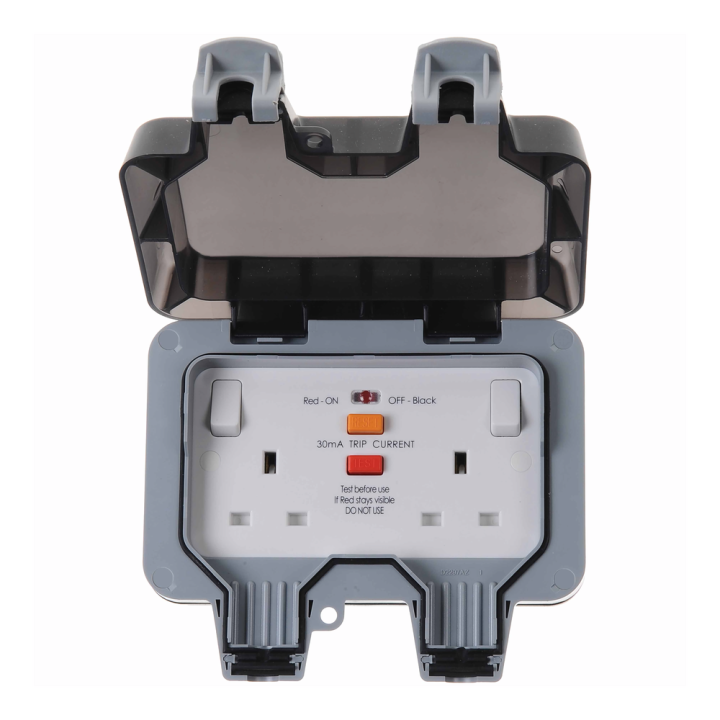

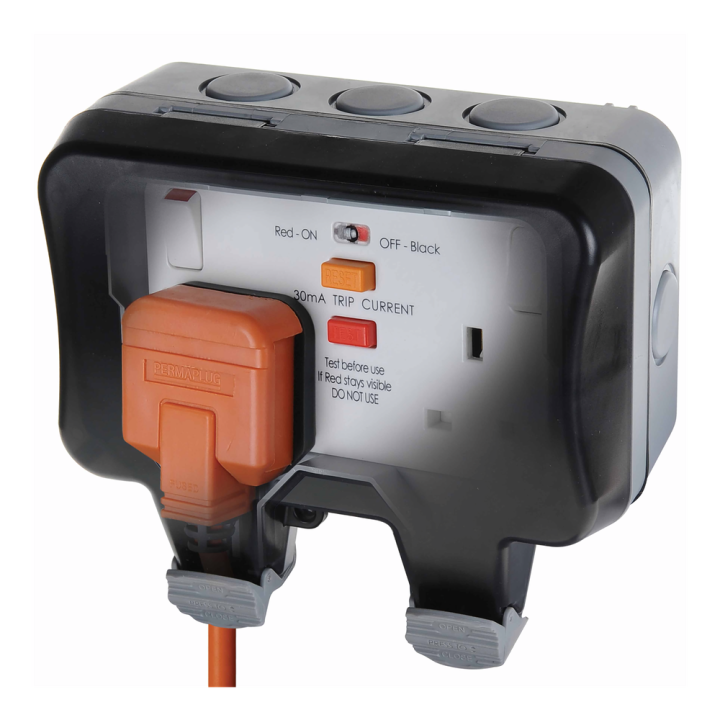

• See-through cover allows status of switches to be seen
• Latched type, 30 mA trip current, 40 mS trip

Specifications:

• Rating: 13A 250V~
• Switch type: Single-pole
• Trip Current: 30 mA
• Switch Type: Single-pole
• Contact gap: 3 mm minimum - rocker switch
• Terminal capacity: 3 x 2.5 mm², 3 x 4 mm², 2 x 6 mm²
• IP rating: IP66
• Number of cable entries: 8 x 20 mm, one in each of the two sides and three in each of the top and bottom faces, one drill out entry 20 mm / 25 mm in rear face
• Size: 171 mm x 154 mm x 80 mm
• Standards: BS 1363 Part 2, BS 7288
