TIMEGUARD RTS113 24 HOUR 20A ELECTRO/MECH TIMESWITCH ROUND

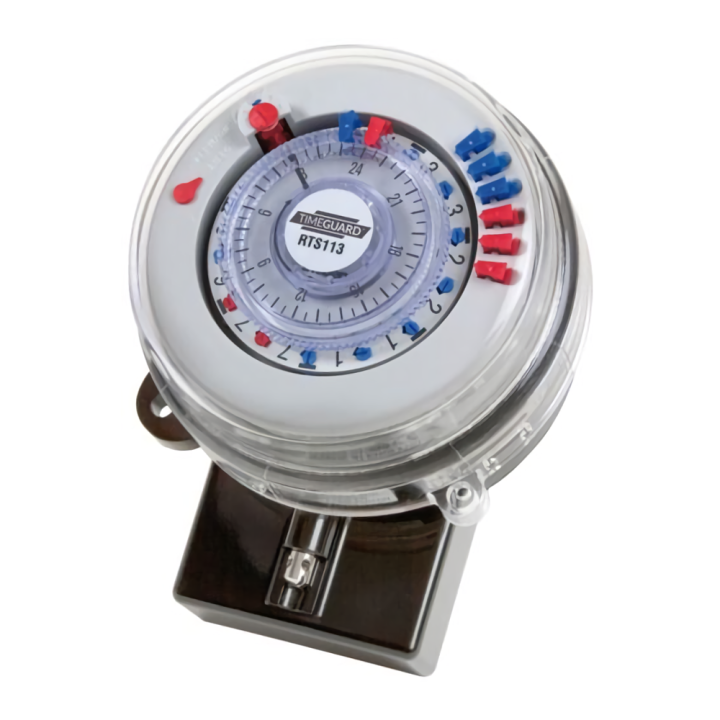

The Timeguard RTS113 is a 20A, 24-hour electro-mechanical round-pattern time controller, with a three-pin wireable base. It is possible to set up to 24 ON / OFF programmes in a 24-hour period, with half day(s) and day(s) omit facility, unlimited over a 7-day period.

The RTS round pattern range is compatible with the base used for the single-channel and two-channel ON / OFF mains linked industry standard round pattern timeswitches. The RTS113 can switch up to 400W incandescent / halogen lighting, but cannot switch fluorescent, low energy or discharge lighting.

Features:

• Double insulated
• Up to 24 ON / OFF programmes in a 24-hour period
• Half day(s) and day(s) omit facility, unlimited over a 7-day period
• Permanent ON facility (with a prominent visual indicator) accessible without removing the transparent cover
• Minimum ON time is 30 minutes which can be incremented in 15 minute steps
• Transparent cover can be locked
• 5-year guarantee

Specifications:

• Timer mode: 24-hour
• Setting type: Tappet & segment
• Voltage free contacts: Mains linked
• Switching capacity - resistive: 20A (4.6 kW)
• Operating voltage: 230V AC
• Operating temperature: -10 °C to 45 °C
• Size: 100 mm x 120 mm x 76 mm
