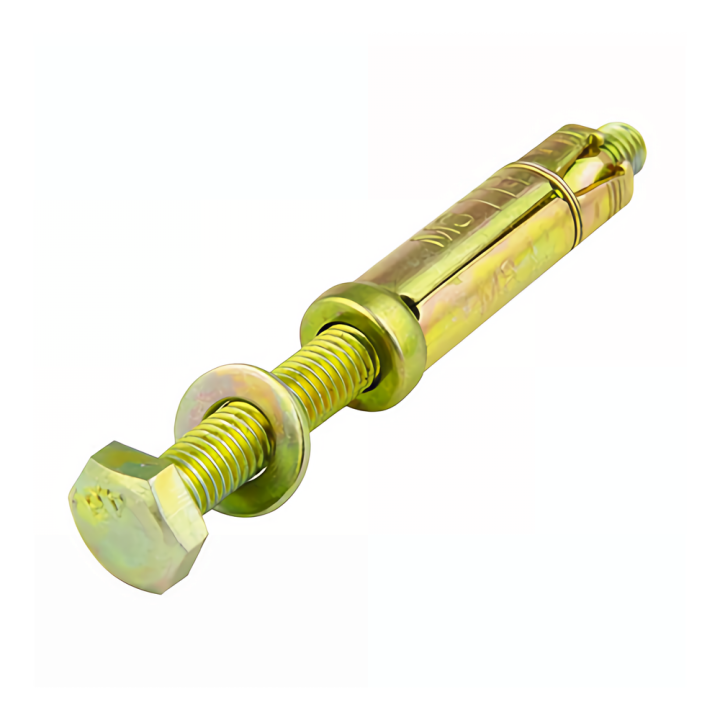

THORBOLT LB1010 M10x90 LOOSE BOLT

10 mm x 25 mm loose bolt. Ideal for floor fixing, when after inserting the shield in the hole, objects have to be slid into place. Applicable for holding down anchors for machinery, seating, switchgear, racking and structural fixings.

Specifications:

• Size: 10 mm x 25 mm
• Bolt length: 90 mm
• Max fixture thickness: 25 mm
• Shield diameter: 16 mm
• Shield length: 60 mm
• Hole size: 16 mm
• Minimum hole depth: 70 mm
