Hex_Nut_Sleeve_Anchor

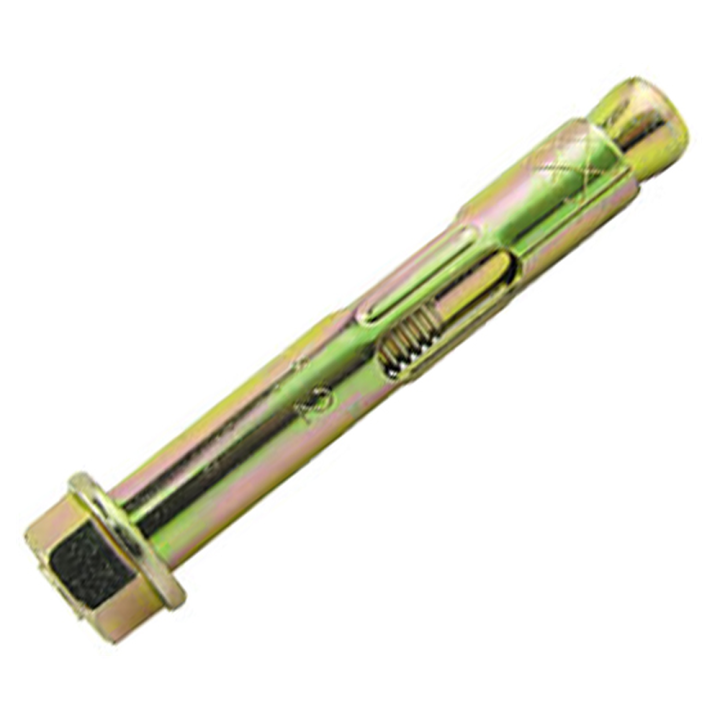

12x100 SLEEVE ANCHOR HEX BOLT (M10 BOLT) 12mm DRILL

12 mm x 99 mm hexagon nut sleeve anchor. General purpose medium duty anchor for use in concrete, brick and stone. A through fixing with thin expansion sleeve for low stress in base material. Zinc plated and yellow passivated.

12 mm x 99 mm hexagon nut sleeve anchor. General purpose medium duty anchor for use in concrete, brick and stone. A through fixing with thin expansion sleeve for low stress in base material. Zinc plated and yellow passivated.

Specifications:

  • Size: 12 mm x 99 mm
  • Max fixture thickness: 49 mm
  • Hole size: 12 mm
  • Minimum hole depth in substrate: 55 mm
  • Minimum penetration depth: 50 mm
  • Washed nut diameter: 21.5 mm

  • Reference
    THOSA12_129
