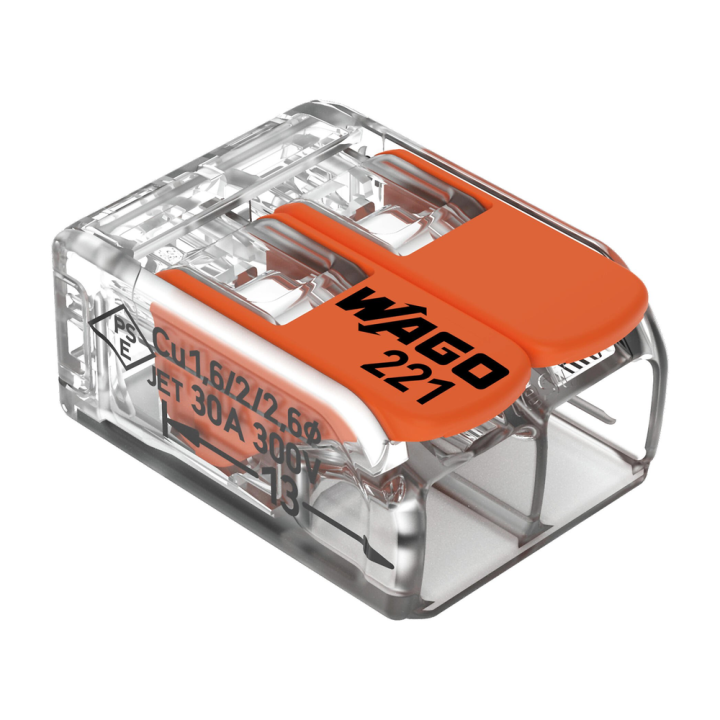

Lever Connector 2-Pole Large

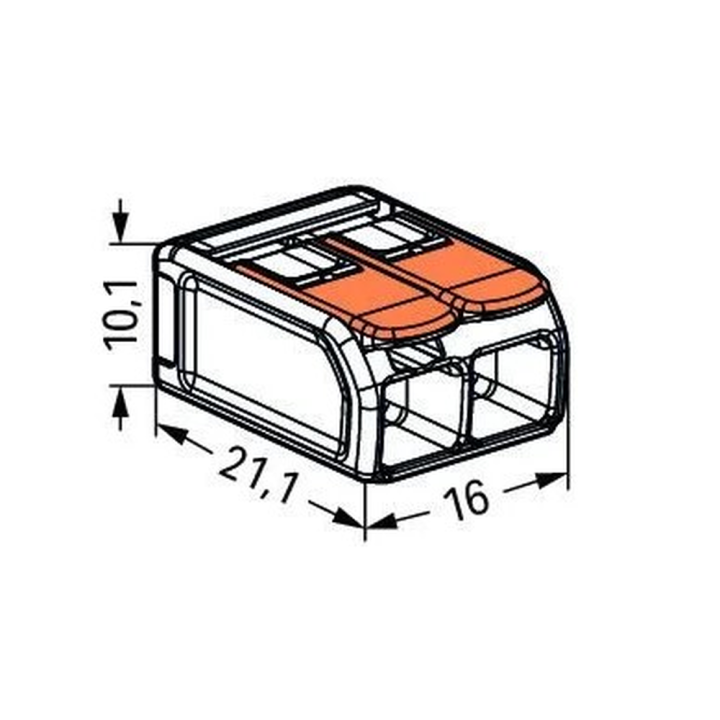

Lever Connector 2-Pole Large Diagram

WAGO 221-612 2-POLE 41A LEVER CONNECTOR (50)

41A 2-pole lever connector, up to 6 mm² wire, for all conductor types. Ease of use with lever by simply pulling lever up, inserting conductor and pushing the lever back down.

41A 2-pole lever connector, up to 6 mm² wire, for all conductor types. Ease of use with lever by simply pulling lever up, inserting conductor and pushing the lever back down.

Sold as boxes of 50.

Features:

  • Ease of use, time-saving solution with its lever action
  • Easily terminate conductors from 0.5 mm² to 6 mm²
  • Connect solid, stranded and fine-stranded conductors

Specifications:

  • Amperage: 41A
  • Poles: 2-pole
  • Size: 10.1 mm x 21.1 mm x 16 mm
  • Connection technology: Cage clamp
  • Connectable conductor materials: Copper
  • Surrounding air temperature (operation): 85°C

  • Reference
    WAGO221612
