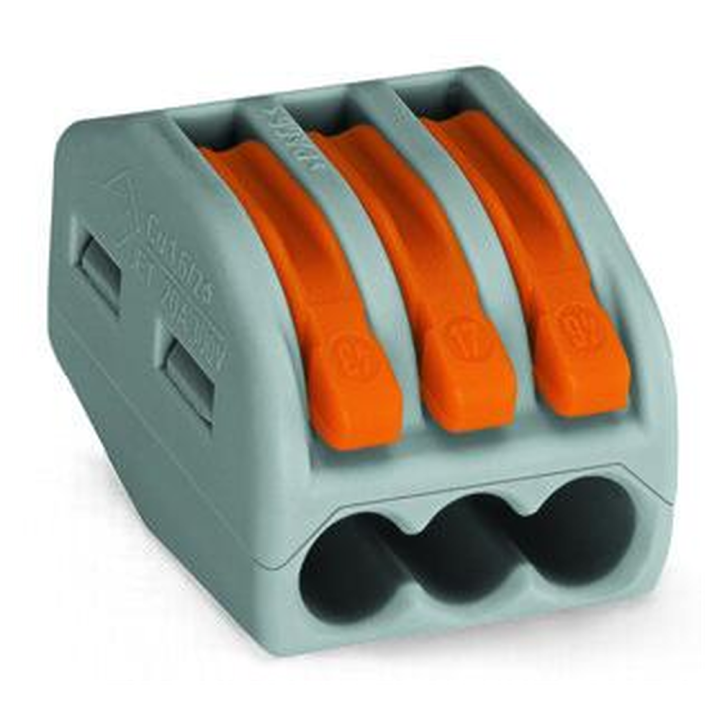

Lever Connector 3-Pole Small

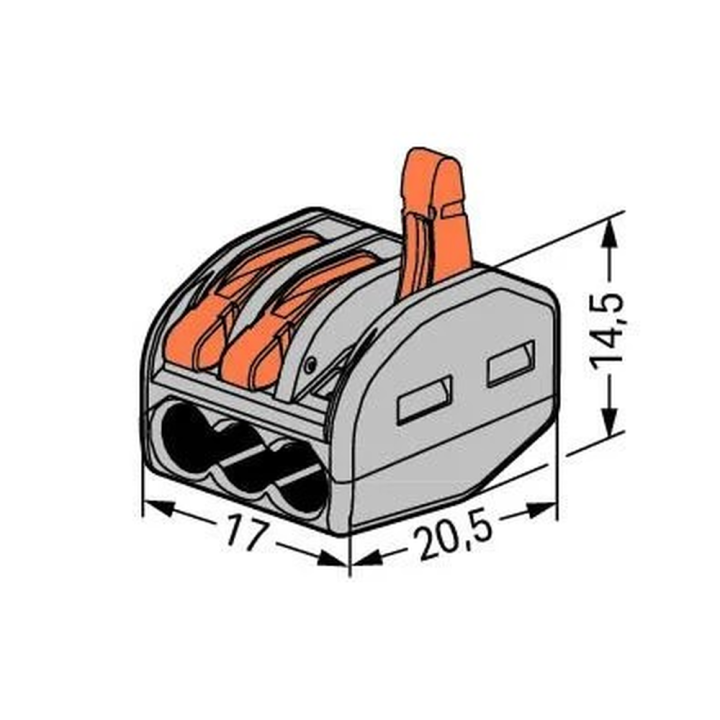

Lever Connector 3-Pole Small Diagram

WAGO 222-413 3-POLE 32A LEVER CONNECTOR (50)

32A 3-pole lever connector, up to 2.5 mm² wire, for all conductor types. Ease of use with lever by simply pulling lever up, inserting conductor and pushing the lever back down.

32A 3-pole lever connector, up to 2.5 mm² wire, for all conductor types. Ease of use with lever by simply pulling lever up, inserting conductor and pushing the lever back down.

Sold as boxes of 50.

Features:

  • Ease of use, time-saving solution with its lever action
  • Easily terminate conductors from 0.08 mm² to 2.5 mm²
  • Connect solid, stranded and fine-stranded conductors

Specifications:

  • Amperage: 32A
  • Poles: 3-pole
  • Size: 14.5 mm x 20.5 mm x 17 mm
  • Connection technology: Cage clamp
  • Connectable conductor materials: Copper
  • Surrounding air temperature (operation): 40°C

  • Reference
    WAGO222413
