BLACK JUNCTION BOX 1.5mm² 3-POLE 85x50x51mm IP66 [206/221]

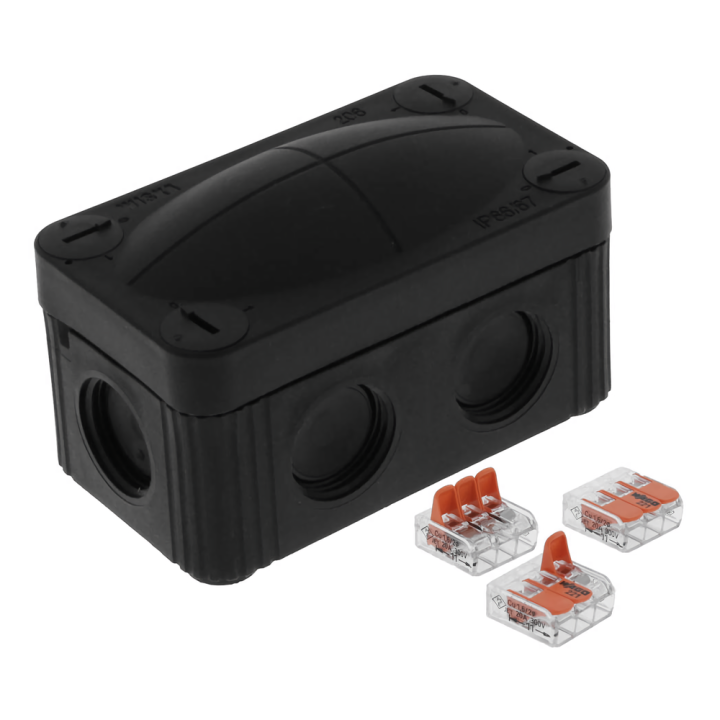

Wiska COMBI 206 BK black junction box with three WAGO 221-413 compact splicing connectors.

Features:

• 4 x internal openings outside of the sealing area for fixing / mounting
• 6 x M20 threaded membrane entries
• 2 x membrane cable entries through rear
• 4 x captive cover screws
• Includes 3 x WAGO 221-413 compact splicing connectors

Specifications:

• Model: COMBI 206 BK / 3xWAGO 221-413
• Colour: black
• IP rating: IP66 (membrane entry), IP67 (threaded entry and gland)

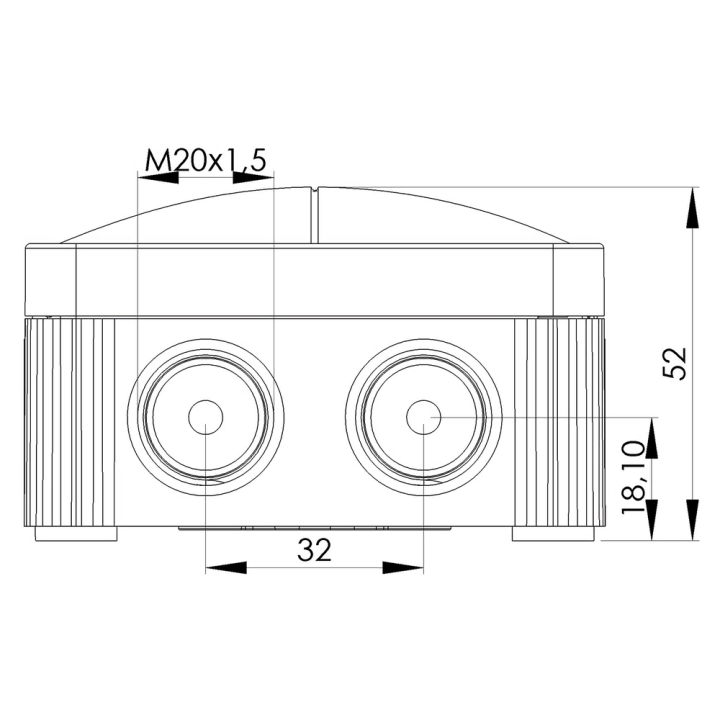

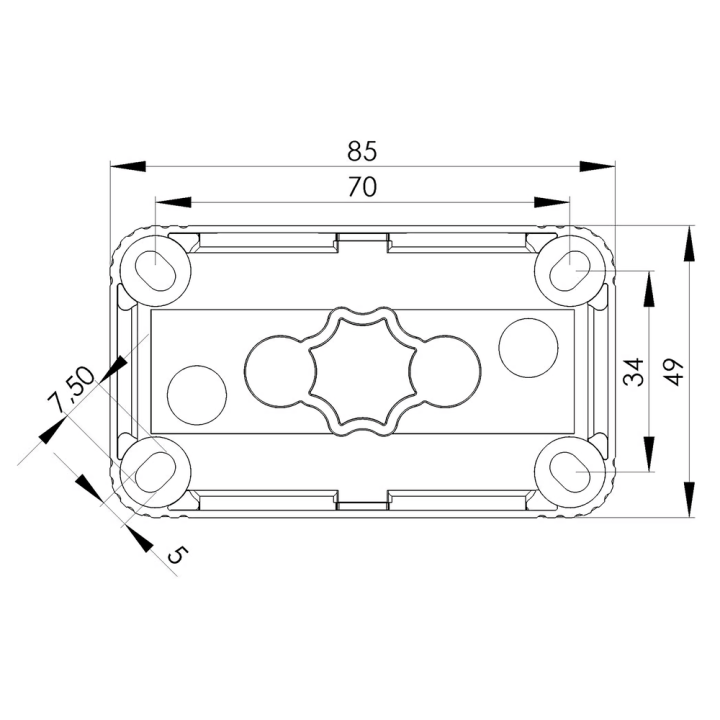

• Size: 85 mm x 49 mm x 51 mm (external)
• Operating temperature: -30 °C to 100 °C
• Current: 32A
• Voltage: 400V
• Terminals / poles: 4 mm²
• Ø cable: 3 mm to 12 mm
