BLACK JUNCTION BOX 2.5mm² 5-POLE 76x76x51mm IP66 [108/5 BK]

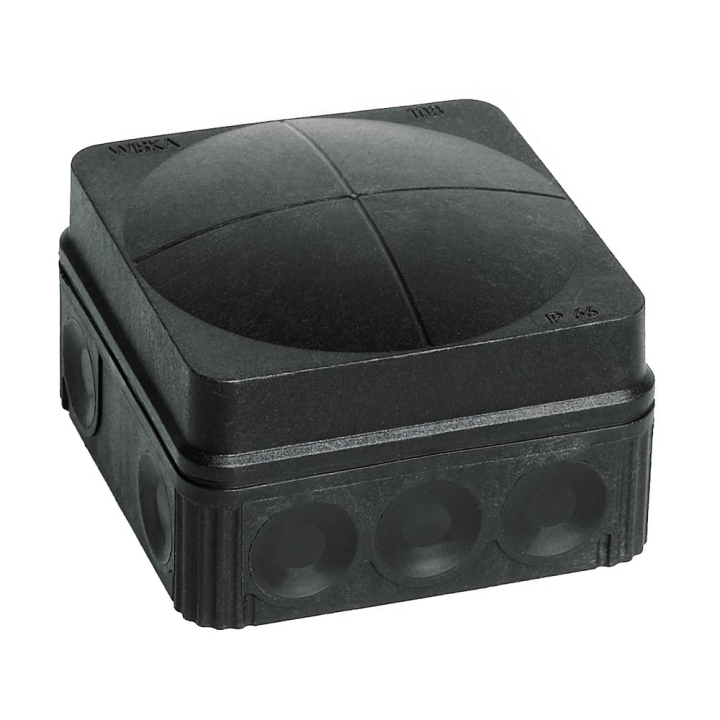

Wiska COMBI 108/5 BK black junction box with terminal block.

Features:

• 2 x internal openings outside of the sealing area for fixing / mounting
• 10 x membrane cable entries through side
• 2 x membrane cable entries through rear

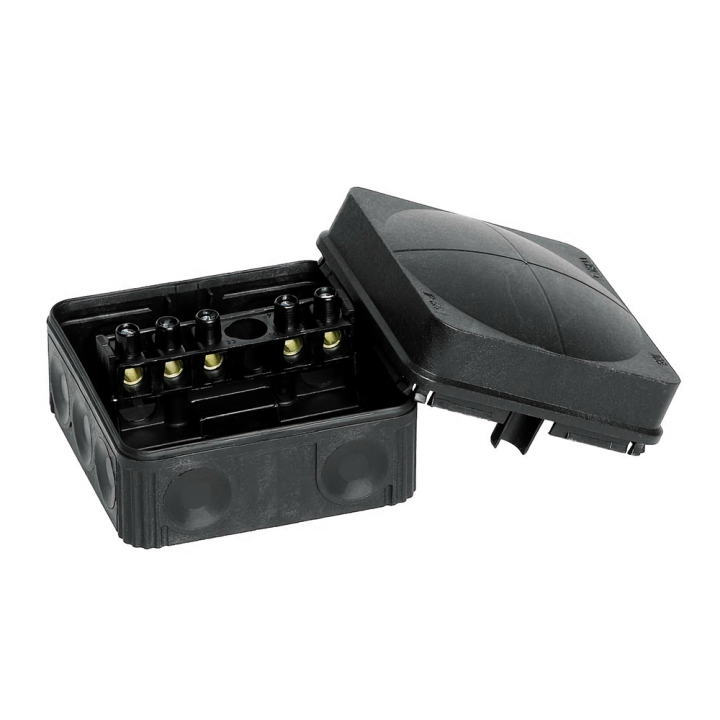

• Terminal block included (5-pole, 2.5 mm²)

Specifications:

• Model: 108/5 BK
• Colour: black
• IP rating: IP66

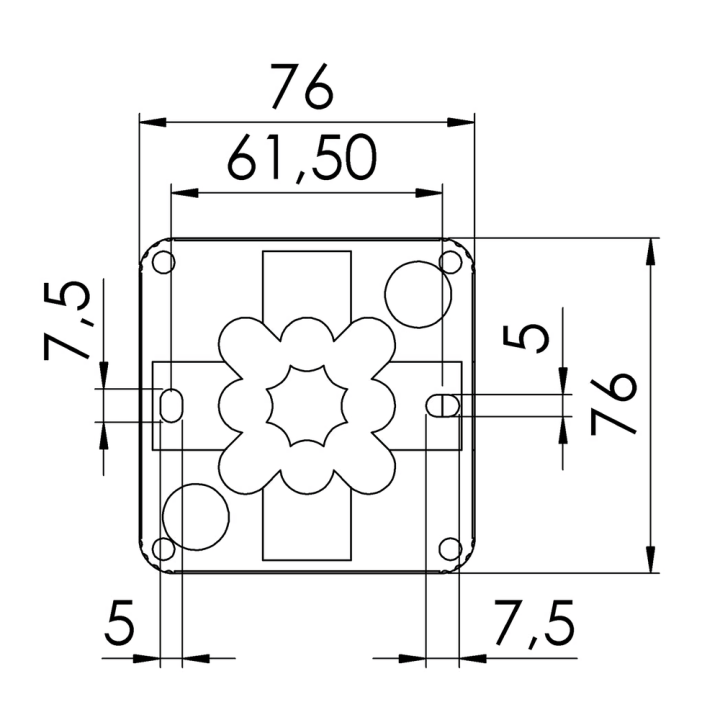

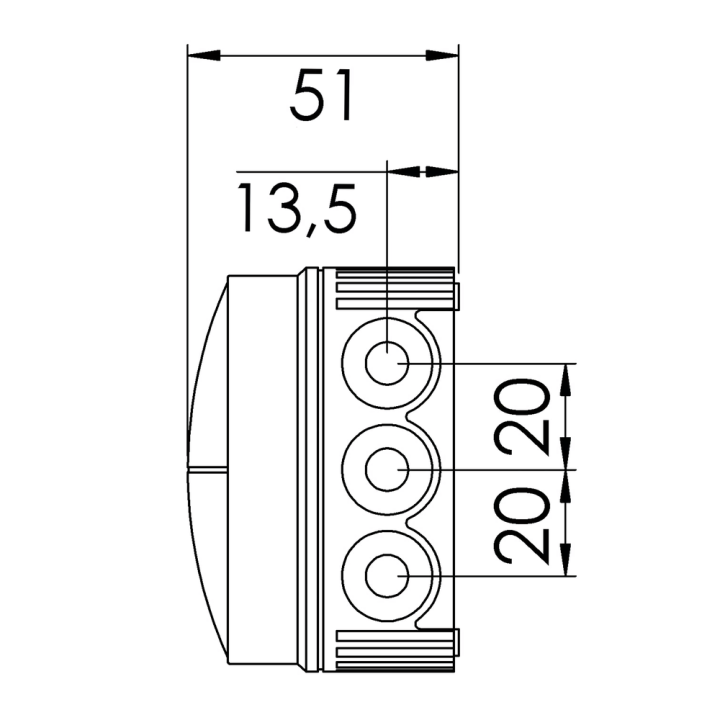

• Size: 76 mm x 76 mm x 51 mm (external)
• Operating temperature: -30 °C to 100 °C
• Current: 24A
• Voltage: 400V
• Terminals / poles: 5 x 2.5 mm²
• Ø cable: 3 mm to 14 mm
