BLACK JUNCTION BOX 4mm² 5-POLE 95x95x60mm IP66 [407/5 BK]

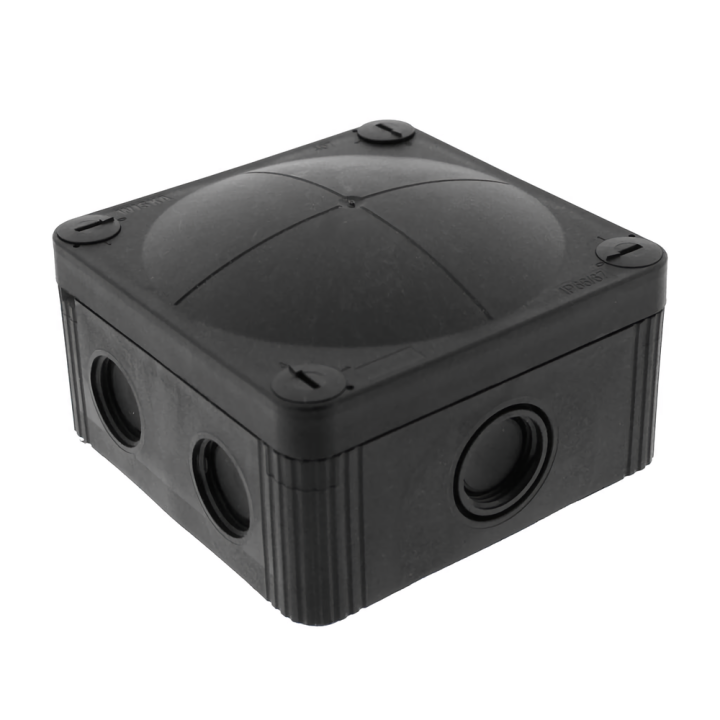

Wiska COMBI 407/5 BK black junction box with terminal block.

Features:

• 4 x internal openings outside of the sealing area for fixing / mounting
• 6 x M20 threaded membrane entries and one middle M20 threaded membrane entry with knockout to M25
• 2 x membrane cable entries through rear
• 4 x captive cover screws
• Terminal block included (5-pole, 4 mm²)

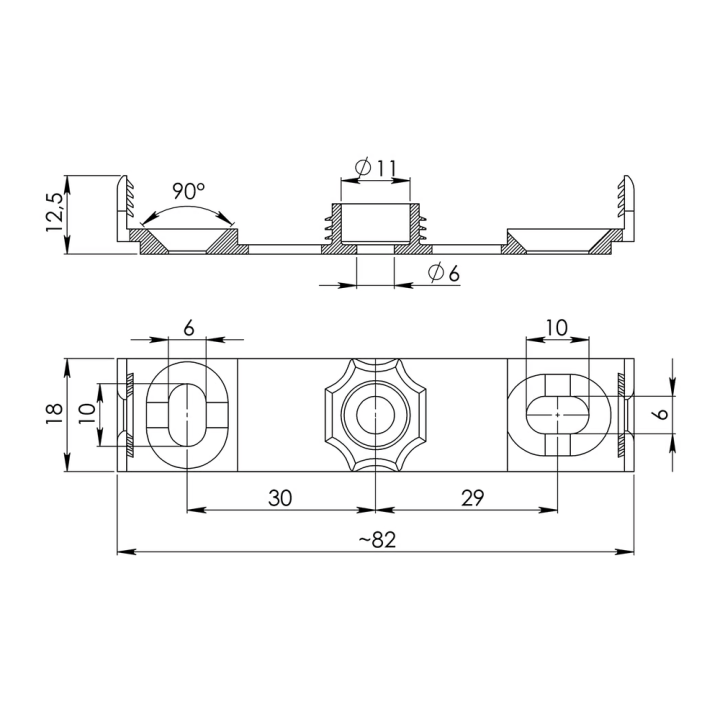

• Mounting clip included

Specifications:

• Model: 407/5 BK
• Colour: black
• IP rating: IP66 (membrane entry), IP67 (threaded entry and gland)
• Size: 95 mm x 95 mm x 60 mm (external)
• Operating temperature: -30 °C to 100 °C
• Current: 32A
• Voltage: 690V
• Terminals / poles: 5 x 4 mm²
• Ø cable: 3 mm to 12 mm
