GREY JUNCTION BOX 6mm² 5-POLE 110x110x66mm IP66 [607/5 LG]

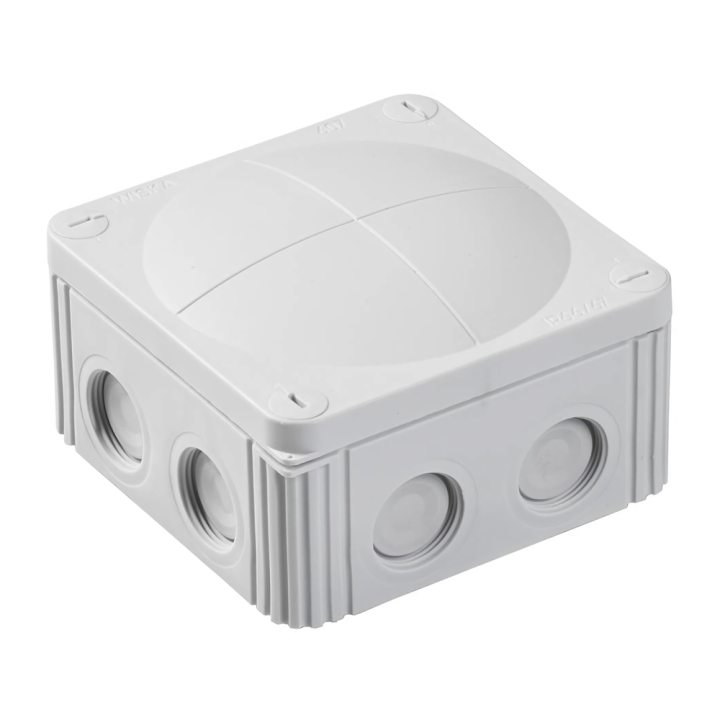

Wiska COMBI 607/5 LG grey junction box with terminal block.

Features:

• 4 x internal openings outside of the sealing area for fixing / mounting

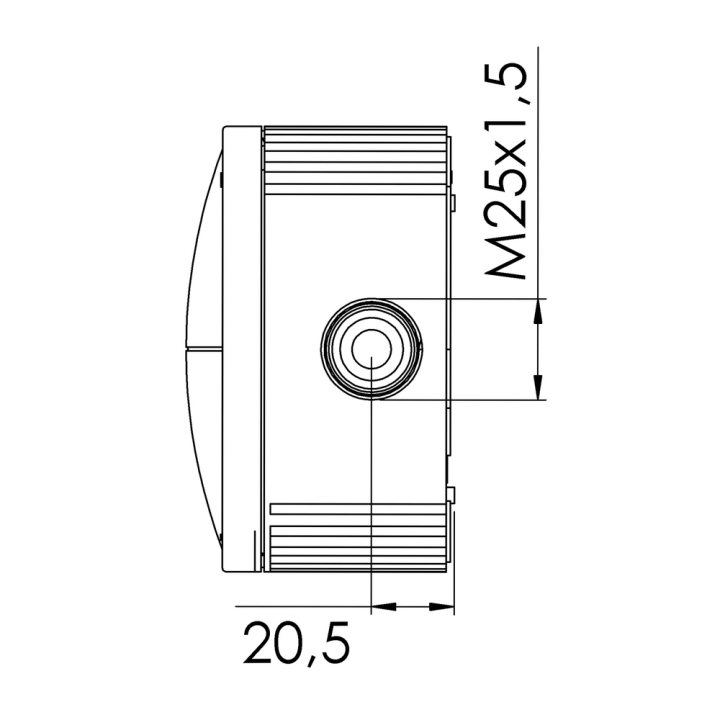

• 7 x M25 threaded membrane entries
• 3 x membrane cable entries through rear
• 4 x captive cover screws
• Terminal block included (5-pole, 6 mm²)

Specifications:

• Model: 607/5 LG
• Colour: grey
• IP rating: IP66 (membrane entry), IP67 (threaded entry and gland)

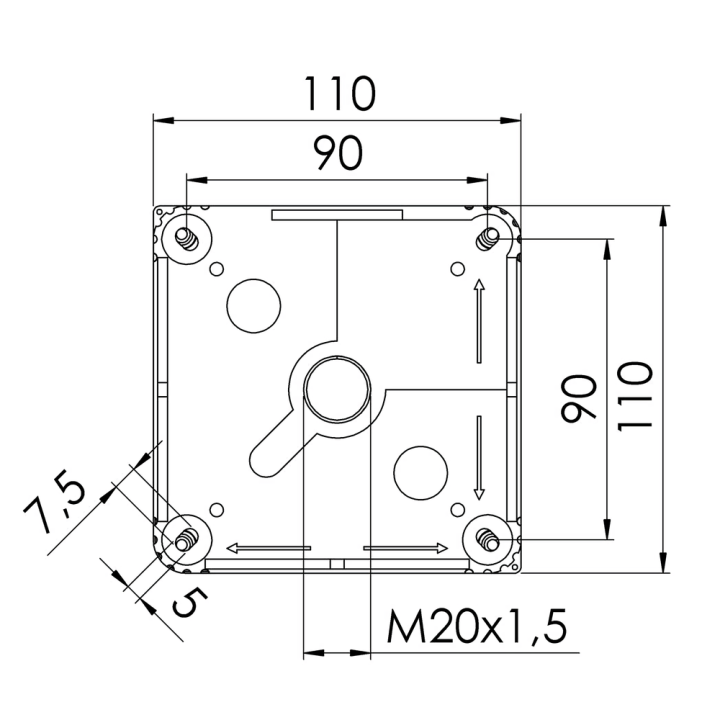

• Size: 110 mm x 110 mm x 66 mm (external)
• Operating temperature: -30 °C to 100 °C
• Current: 41A
• Voltage: 690V
• Terminals / poles: 5 x 6 mm²
• Ø cable: 5.2 mm to 17 mm
