GREY JUNCTION BOX 6mm² 5-POLE 160x140x81mm IP66 [1210/5 LG]

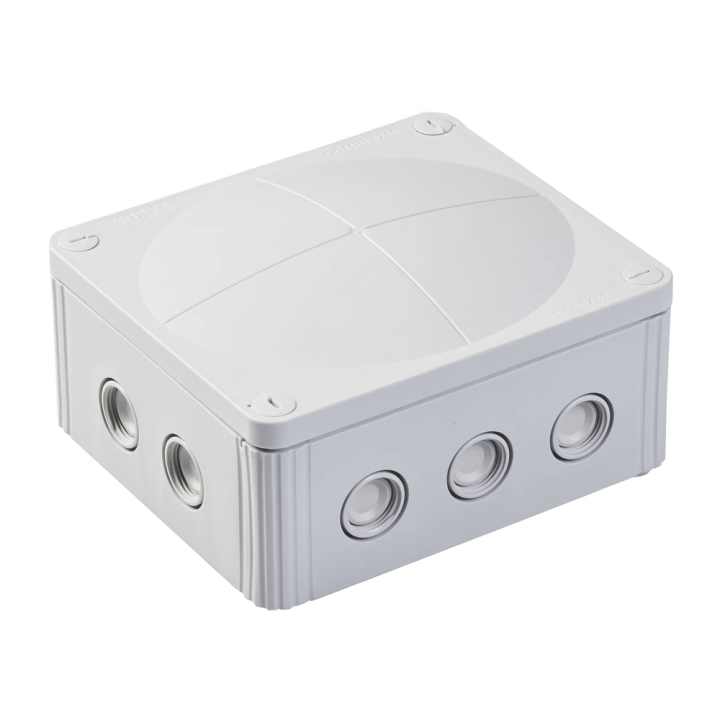

Wiska COMBI 1210/5 LG grey junction box with terminal block.

Features:

• 4 x internal openings outside of the sealing area for fixing / mounting
• 10 x M20 threaded membrane entries and M25 knockouts
• 4 x membrane cable entries through rear
• 4 x captive cover screws
• Terminal block included (5-pole, 10 mm²)

Specifications:

• Model: 1210/5 LG
• Colour: grey
• IP rating: IP66 (membrane entry), IP67 (threaded entry and gland)

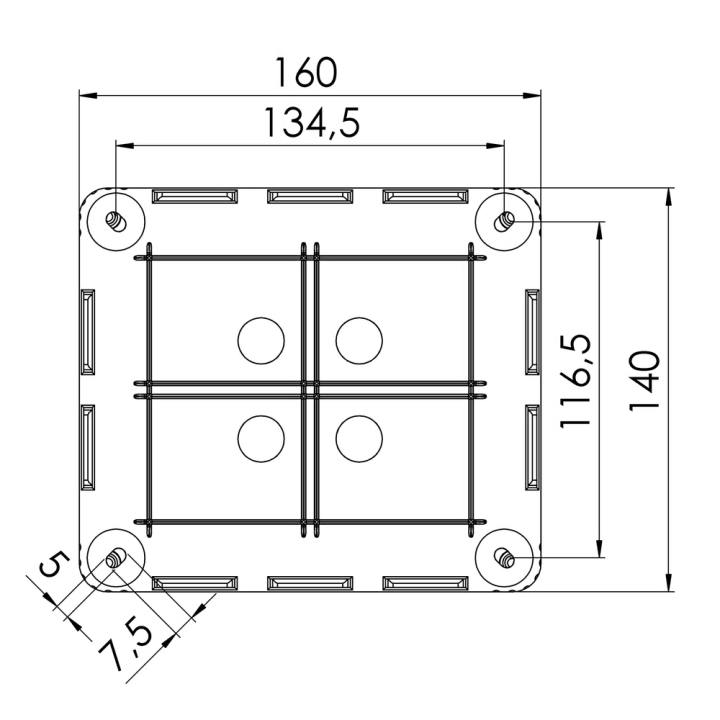

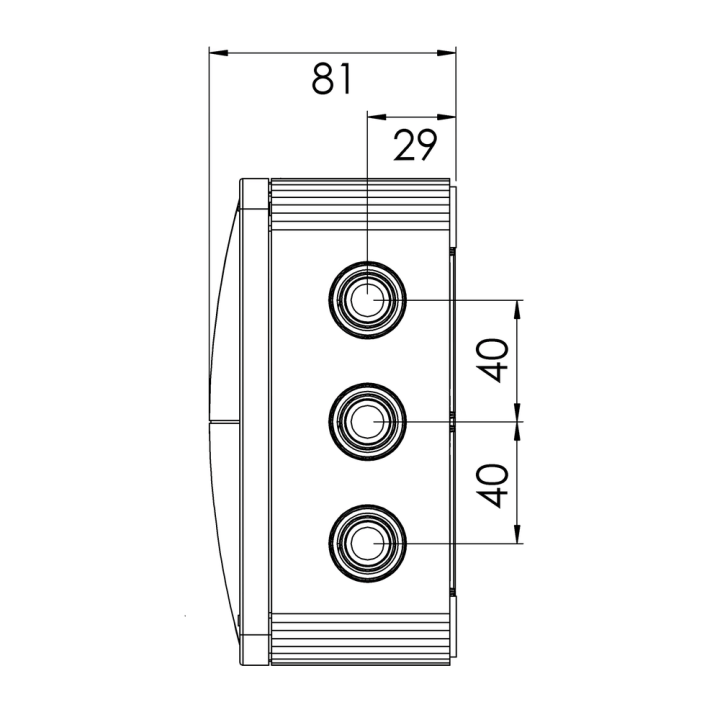

• Size: 160 mm x 160 mm x 81 mm (external)
• Operating temperature: -30 °C to 100 °C
• Current: 57A
• Voltage: 690V
• Terminals / poles: 5 x 10 mm²
• Ø cable: 3 mm to 12 mm
