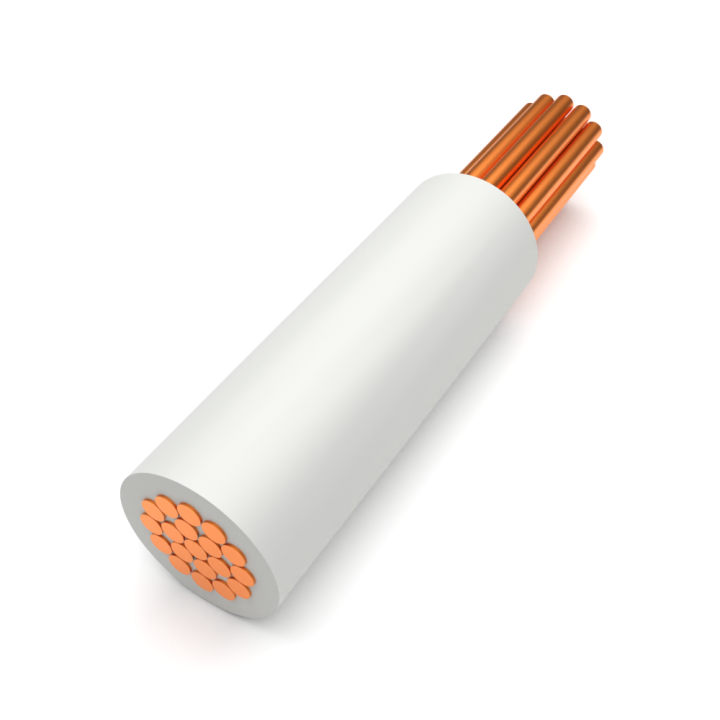

4mm TRI-RATED WHITE PANEL WIRE BS/UL/CSA 90°C

4 mm² tri-rated white cable, sold in reels of 100 metres. Also known as panel wire or switchgear cable, it is suitable for use in Europe and North America as it meets the requirements of three different standards bodies:

• British Standards Institute (BSI) - BS 6231:2006, type CK
• Underwriters Laboratories (UL) Appliance Wiring Materials (AWM) - UL578
• Canadian Standards Association (CSA) - CSA-C22.2 No. 127-15

Specifications:

• Size: 4 mm²
• Colour: white
• Reel size: 100 metres
• Voltage: 300V / 500V, 450V / 750V, 600V / 1,000V
• Insulation / outer sheath: PVC (polyvinyl chloride)
• Flexible (Class 5) high temperature
• Flame-retardant single core
• Single insulated cable
• Maximum conductor temperature: 90 °C
• Standards: See above

Applications:

• Internal connections in rectifier equipment, motor starters and controllers
• Wiring of switch, control, metering, relay and instrument panels of power switchgear
• For use at alternating voltages not exceeding 600V to earth, and direct voltages not exceeding 1,000V to earth
