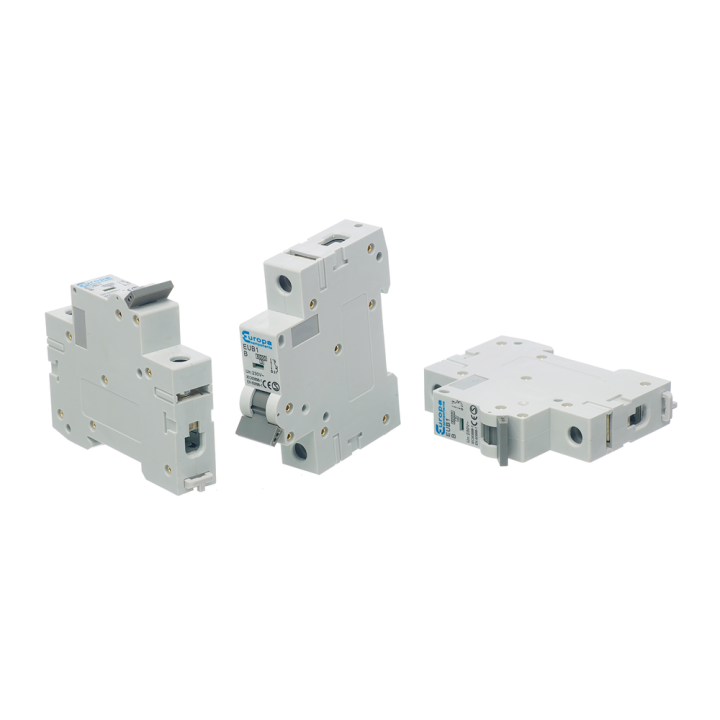

EUB140B 40A MCB 6kA B TYPE 1-POLE
The Europa EUB140B is a 40A, single-pole, B-type miniature circuit breaker (MCB) with a short-circuit capacity of 6 kA.
The Europa EUB140B is a 40A, single-pole, B-type miniature circuit breaker (MCB) with a short-circuit capacity of 6 kA.
Specifications:
- Characteristic curve: B
- Rated current: 40A
- Rated voltage: 230V AC
- Rated frequency: 50 Hz / 60 Hz
- Number of poles: 1
- Rated short-circuit capacity: 6 kA
- Operating temperature: -5 °C to 40 °C
- Mounting: 35 mm DIN rail
- Terminal capacity: 1.0 mm² to 25 mm²
- Standards: IEC 60898, EN 60898
-
ReferenceEUREUB140B
