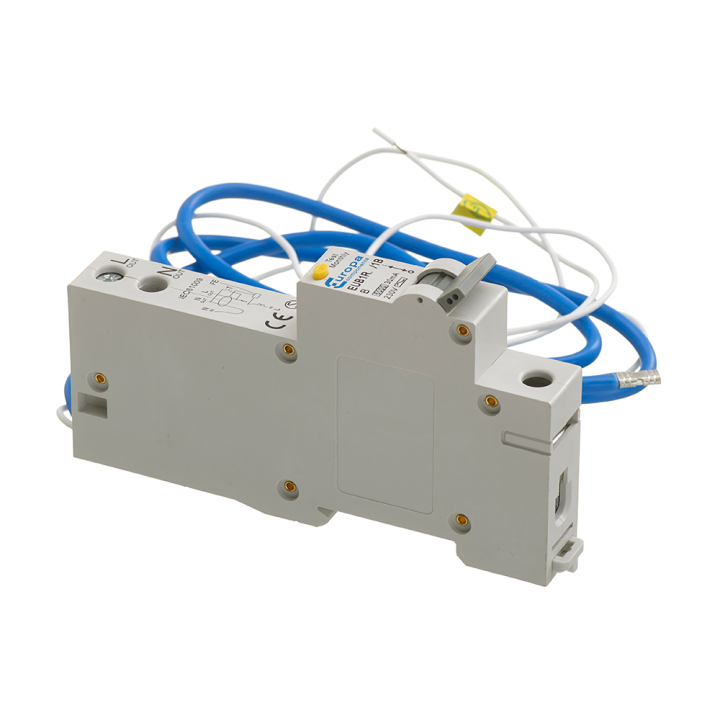

EUB1RC.40/1B 40A RCBO 30mA B TYPE 1-POLE

The Europa EUB1RC.40/1B is a 40A, B-type RCBO (residual current circuit breaker with overcurrent protection), with a 30 mA trip and a short-circuit capacity of 6 kA.

Specifications:

• Characteristic curve: B
• Rated current: 40A
• Rated residual operating current: 30 mA
• Rated voltage: 230V AC
• Rated frequency: 50 Hz / 60 Hz
• Number of poles: 1
• Rated short-circuit capacity: 6 kA
• Operating temperature: -25 to 40°C
• Mounting: 35 mm DIN rail
• Terminal capacity: 1.0 mm² to 16 mm²
• Standards: IEC 61009, EN 61009
