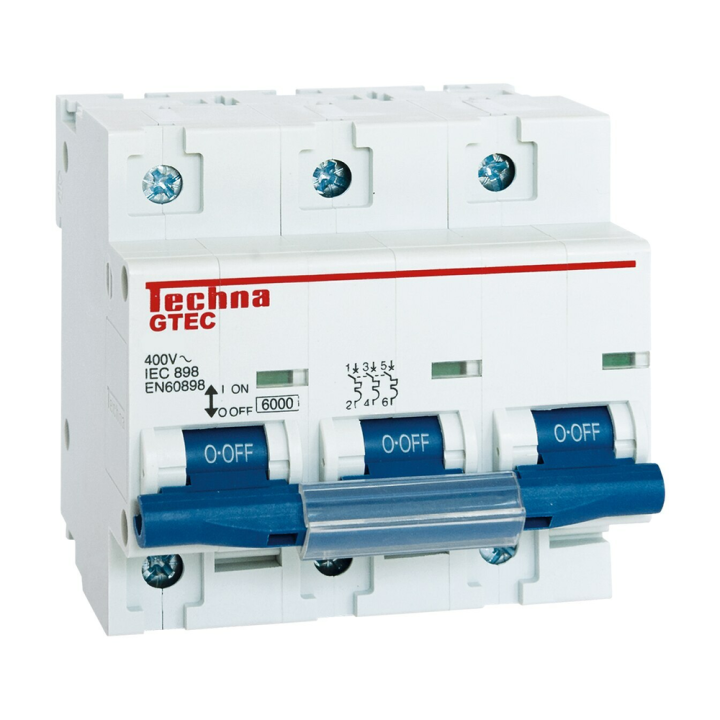

GTEC 3C100 100A MCB 6KA C TYPE 3-POLE

This 100A c-type Techna Gtec minature circuit breaker provides absolute value on price to performance ratios for customers requiring 6 kA protection in demanding applications.

Specifications:

• Characteristic curve: C
• Rated current: 100A
• Rated voltage: 230V / 400V AC
• Number of poles: 3
• Rated short-circuit capacity: 6 kA
• Width: 1.5 module (26.5 mm)
• Ambient operating temperature range: -20°C to 60°C
• Cable size: 25 mm² to 35 mm²
• Terminal tightening torque: 2.3 Nm to 3.5 Nm
