EUC3P32C 32A MCB 10kA C TYPE 3-POLE

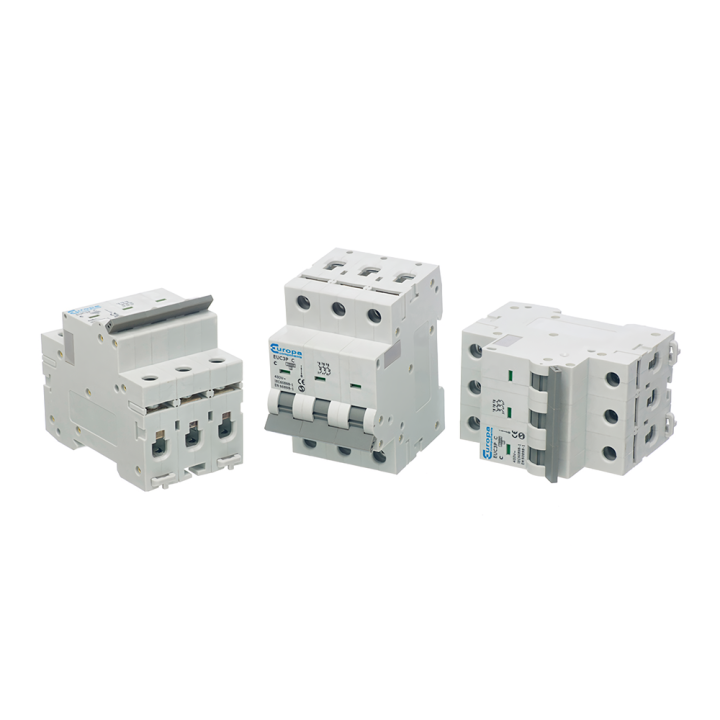

The Europa EUC3P32C is a 32A, triple-pole, C-type miniature circuit breaker (MCB) with a short-circuit capacity of 10 kA.
The Europa EUC3P32C is a 32A, triple-pole, C-type miniature circuit breaker (MCB) with a short-circuit capacity of 10 kA.
Specifications:
- Characteristic curve: C
- Rated current: 32A
- Rated voltage: 230V / 400V AC
- Rated frequency: 50 Hz / 60 Hz
- Number of poles: 3
- Rated short-circuit capacity: 10 kA
- Operating temperature: -5 °C to 40 °C
- Mounting: 35 mm DIN rail
- Terminal capacity: 1.0 mm² to 25 mm²
- Standards: IEC 60898, EN 60898
-
