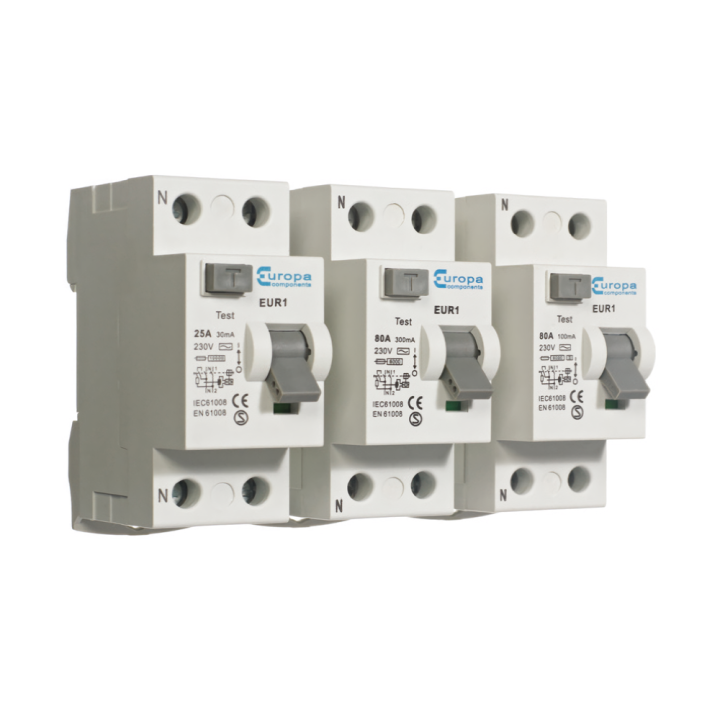

EUR1100.30/2 100A RCCB 30mA 2-POLE

The Europa EUR1100.30/2 is a 100A, 2-pole RCCB (residual current circuit breaker), with a 30 mA trip and a short-circuit capacity of 10 kA.

Specifications:

• Rated current: 100A
• Rated residual operating current: 30 mA
• Rated voltage: 230V AC
• Rated frequency: 50 Hz / 60 Hz
• Number of poles: 2
• Rated short-circuit capacity: 10 kA
• Operating temperature: -5 °C to 40 °C
• Mounting: 35 mm DIN rail
• Terminal capacity: 1.5 mm² to 25 mm²
• Standards: IEC 61008, EN 61008
