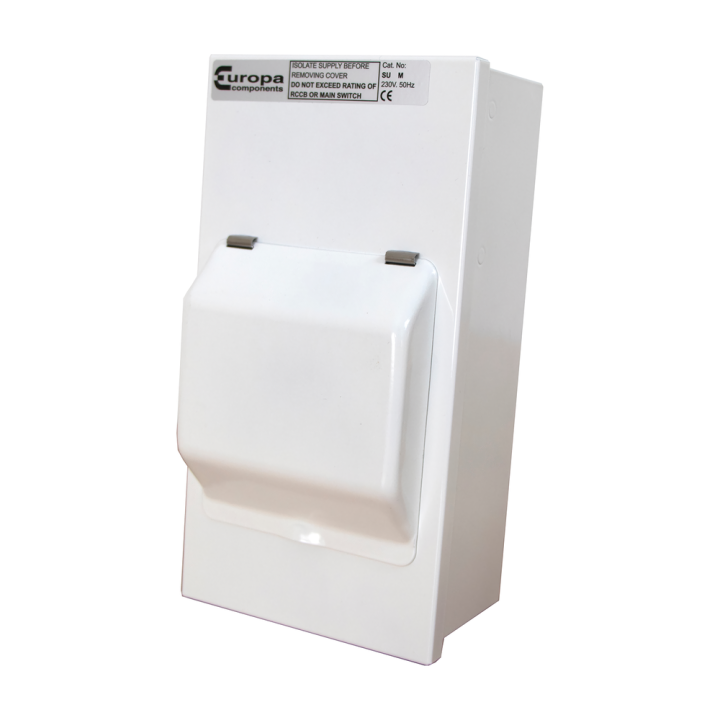

SU40M 40A METAL SHOWER UNIT + 63A RCCB

The Europa SU40M is a metal-clad shower unit with 40A MCB, 63A RCCB and blank module, compliant with BS7671 Amendment 3.

Features:

• Metal-clad enclosure (white)
• EUR163.30/2 63A 30 mA trip 2-pole RCCB
• EUB140B 40A single-pole MCB (B-type)
• Earth & neutral terminals included
• Blank module

Specifications:

Enclosure

• IP rating: IP40
• Size: 238 mm x 125 mm x 102 mm
• Standards: BS7671 Amendment 3

MCB (miniature circuit breaker)

• Characteristic curve: B
• Rated current: 40A
• Rated voltage: 230V AC
• Rated frequency: 50 Hz / 60 Hz
• Number of poles: 1
• Rated short-circuit capacity: 6 kA
• Operating temperature: -5 °C to 40 °C
• Mounting: 35 mm DIN rail
• Terminal capacity: 1.0 mm² to 25 mm²
• Standards: IEC 60898, EN 60898

RCCB (residual current circuit breaker)

• Rated current: 63A
• Rated residual operating current: 30 mA
• Rated voltage: 230V AC
• Rated frequency: 50 Hz / 60 Hz
• Number of poles: 2
• Rated short-circuit capacity: 10 kA
• Operating temperature: -5 °C to 40 °C
• Mounting: 35 mm DIN rail
• Terminal capacity: 1.5 mm² to 25 mm²
