SCHNEIDER A9F54150 SP 50A C MCB

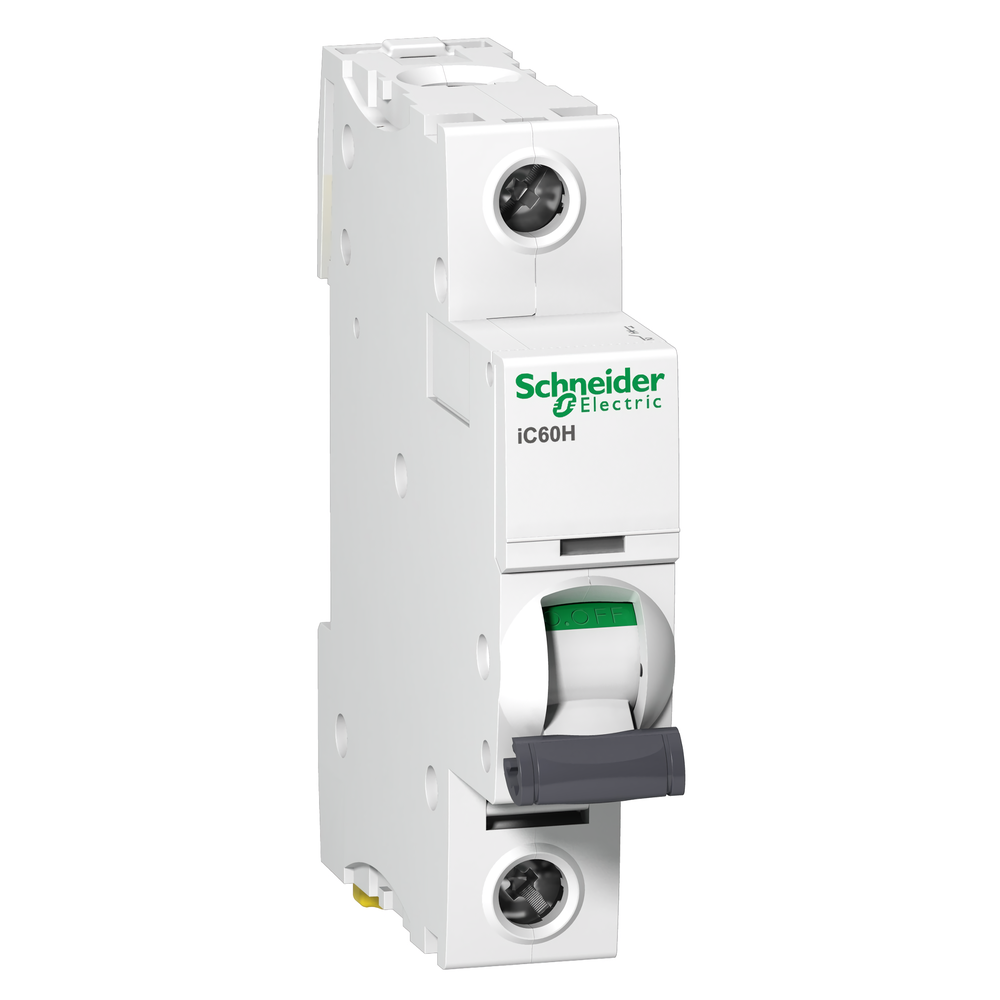

The Schneider Acti 9 iC60H A9F54150 is a 50A, single-pole, C-type miniature circuit breaker (MCB) with a short-circuit capacity of 10 kA.

Specifications:

  • Characteristic curve: C
  • Rated current: 50A
  • Rated voltage: 230V AC
  • Rated frequency: 50 Hz / 60 Hz
  • Number of poles: 1
  • Rated short circuit capacity: 10 kA
  • Operating temperature: -35 °C to 70 °C
  • Mounting: DIN rail
  • Terminal capacity: 1 mm² to 25 mm²
  • Size: 85 mm x 78.5 mm x 18 mm
  • Standards: EN/IEC 60947-2, EN/IEC 60898-1

Stock Code: MGA9F54150

Name File Name
Schneider A9F54150 data sheet Schneider A9F54150 data sheet.pdf
