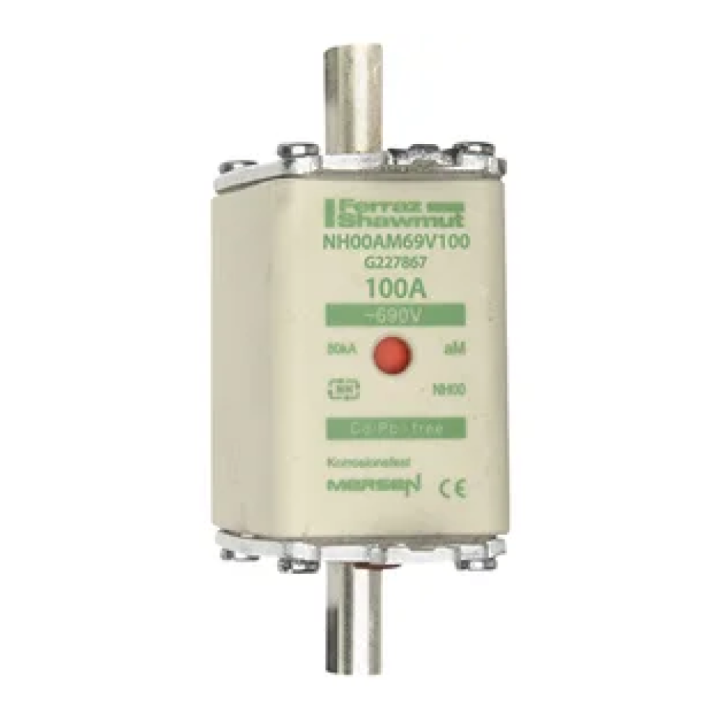

NH 100A aM 690V AC FUSE-LINK SIZE 00
100A NH fuse-link, aM 690V AC. Type "aM"" NH fuse-links are partial-range breaking capacity fuse-links, used to protect motor circuits as they are strongly current-limiting and have low power losses. They interrupt currents from 6.3 times In up to their maximum breaking capacity and are therefore suited for short-circuit protection only. They must be associated with other switchgear for protection against overloads. These fuse-links can have a rated current equal to the motor's nominal current.
100A NH fuse-link, aM 690V AC. Type "aM"" NH fuse-links are partial-range breaking capacity fuse-links, used to protect motor circuits as they are strongly current-limiting and have low power losses. They interrupt currents from 6.3 times In up to their maximum breaking capacity and are therefore suited for short-circuit protection only. They must be associated with other switchgear for protection against overloads. These fuse-links can have a rated current equal to the motor's nominal current.
Features:
- Dimensions according to DIN 43 620 parts 1 to 4
- Non-isolated gripping lugs
- Double indicator
- 0% cadmium
Specifications:
- Amperage: 100A
- Voltage: 690V AC
- Power dissipation at In: 5.2W
- Standards: VDE 0636 Part 201, IEC 60269-1 and -2
-
ReferenceFUSNH00100A
