LUXOMAT PD9-1C-FC [92902] MINI FLUSH CEILING PIR SWITCH

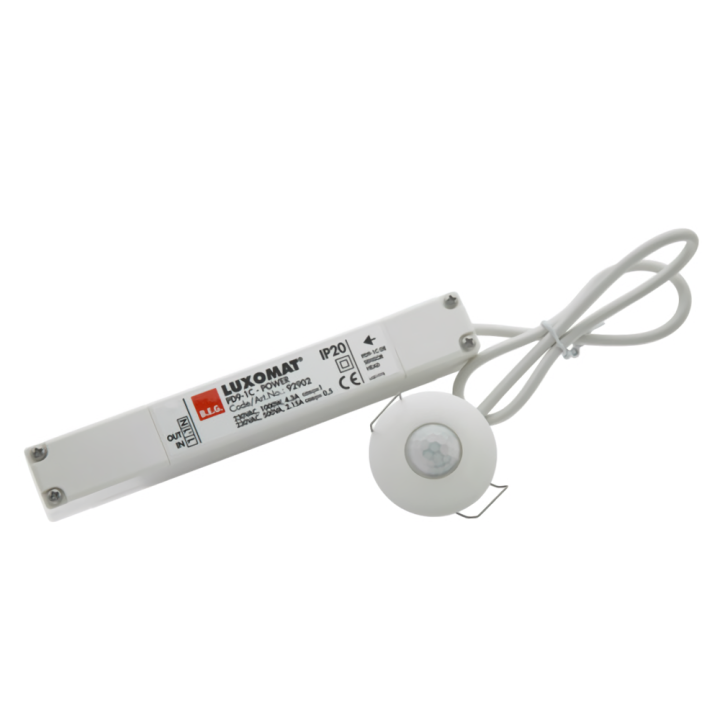

B.E.G. Luxomat PD9-1C-FC miniature flush surface ceiling mounted infrared presence / motion detector.

Mini-motion detector for indoor use
One channel for light switching
Easy installation on device
Power supply passes through the hole in the ceiling for the detector (Ø 34 mm)
Spring clips for quick and easy installation in suspended ceilings and light fittings
Includes 45 mm cover ring and blinds
Typical applications: offices, conference rooms, hospitals, galleries, nursery schools

Model: 92902
Voltage: 110V to 240V AC, 50 Hz / 60 Hz

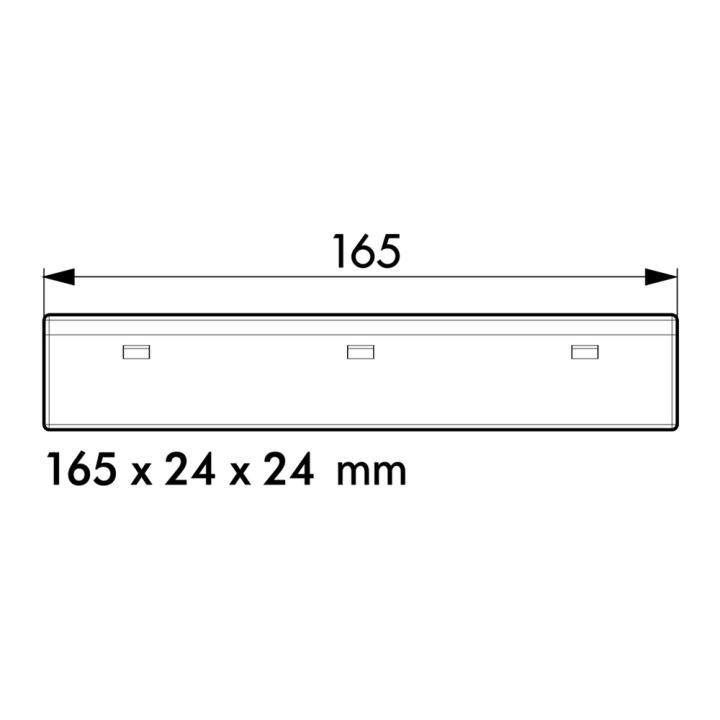

Size: Sensor head Ø 45 mm x 37 mm, power supply 165 mm x 24 mm x 24 mm
Power consumption: Approx. 0.5W
Detection area: Vertical 360°

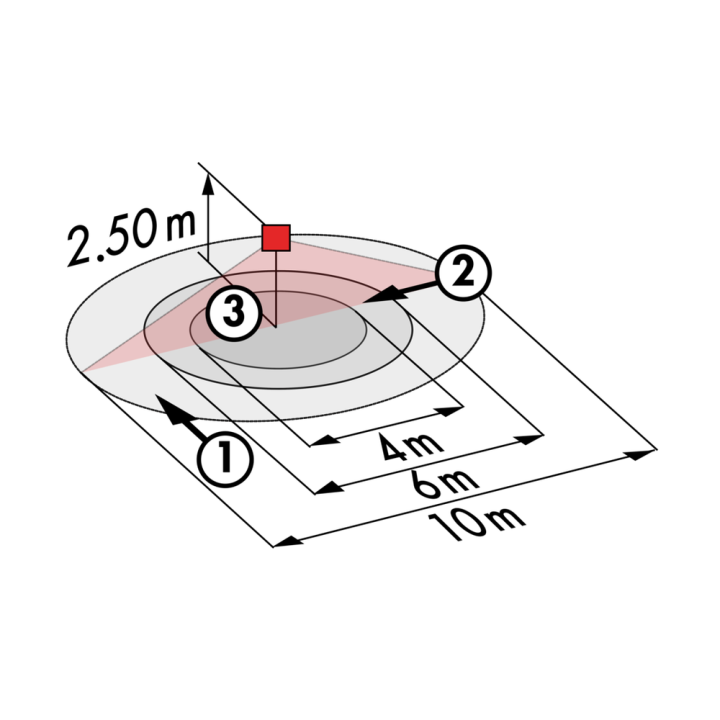

Range: Max. Ø 10 metres across, max. Ø 6 metres towards, max. Ø 4 metres seated
Monitored area (tangential movement): 79 m², 2.5 metres mounting height
Mounting height: 2 metres min., 5 metres max., 2.5 metres recommended
Degree / class of protection: IP23, class II
Ambient temperature: -25 °C to 50 °C
Housing: Polycarbonate, UV-resistant
Cable length: 45 cm
Switching power (ohmic load): 1,000W, cos φ = 1
Switching power (inductive load): 500 VA, cos φ = 0.5
Switching power (LED): 200W LED, max. inrush current Ip (20 ms) = 165A, max. inrush current Ip (200 µs) = 800A

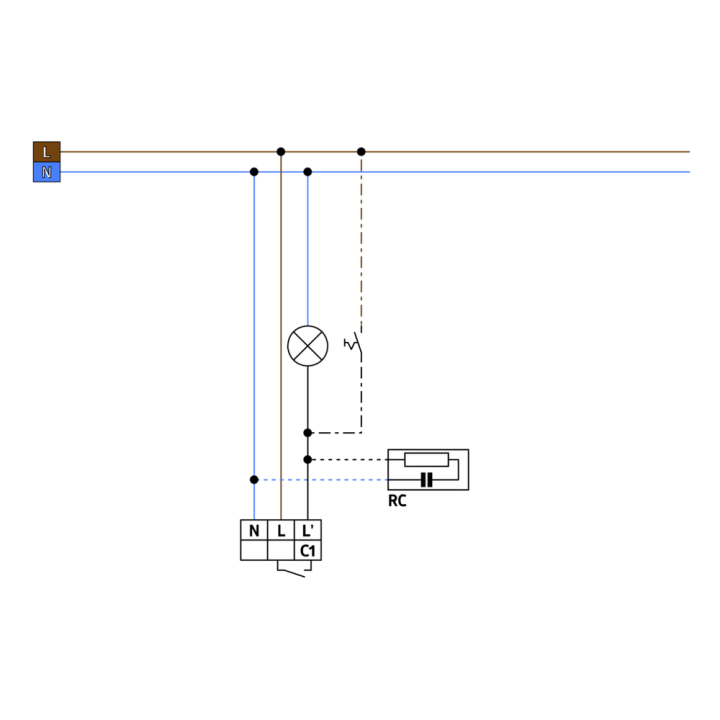

Type of contact: 1 x µ-contact, N/O contact with tungsten pre-make contact
Follow-up time: 30 sec. to 30 min., pulse
Switch-on threshold: 10 to 2,000 lux
