TIMEGUARD SLB2300 PIR 180° 12M 2300W/250W LED IP55 BLACK

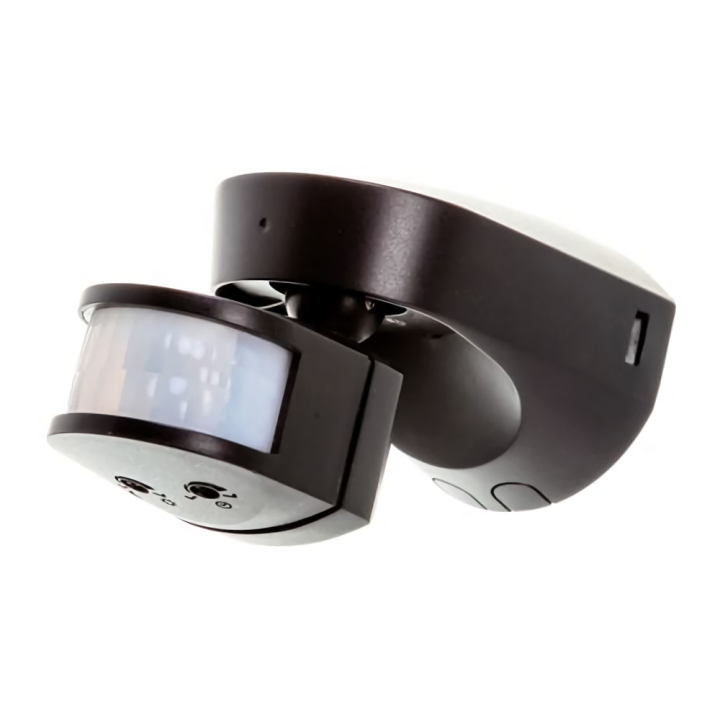

The Timeguard SLB2300 is a passive infrared (PIR) sensor in black, for presence detection and lighting control. It is suitable for switching 250W of LED lighting, 2,300W of incandescent / halogen lighting, or 500W of fluorescent lighting.

Features:

• Total PIR switching: 2300W incandescent / halogen, 500W fluorescent / low energy plus 250W LED
• 12-metre detection range with 180° area of detection
• Pan and tilt feature
• Light ON times adjustable from 5 seconds to 15 minutes
• Lux (light level) adjustment day to night (2 to 1000)
• Manual ON / OFF switching override
• IP55 weatherproof rating
• Simple and quick to fit terminal block connectors
• Corner mounting bracket available (SLBCB)
• 3-year guarantee

Specifications:

• Operating voltage: 230V AC
• Switching capacity - LED: 250W
• Switching capacity - fluorescent: 500W
• Switching capacity - incandescent / halogen: 2,300W
• IP rating: IP55
• Detection range (max.): 12 metres
• Angle of detection: 180°
• Light ON time after last detection (adjustable): 5 seconds (min.), 15 minutes (max.)
• Permanent ON facility: Electronic
• Adjustable light level control: Yes
• Size: 95 mm x 78 mm x 141 mm
