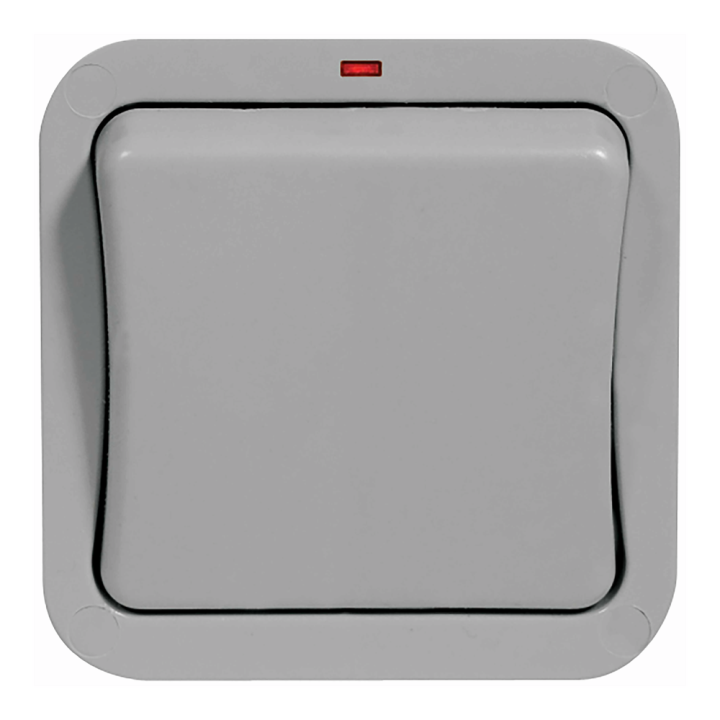

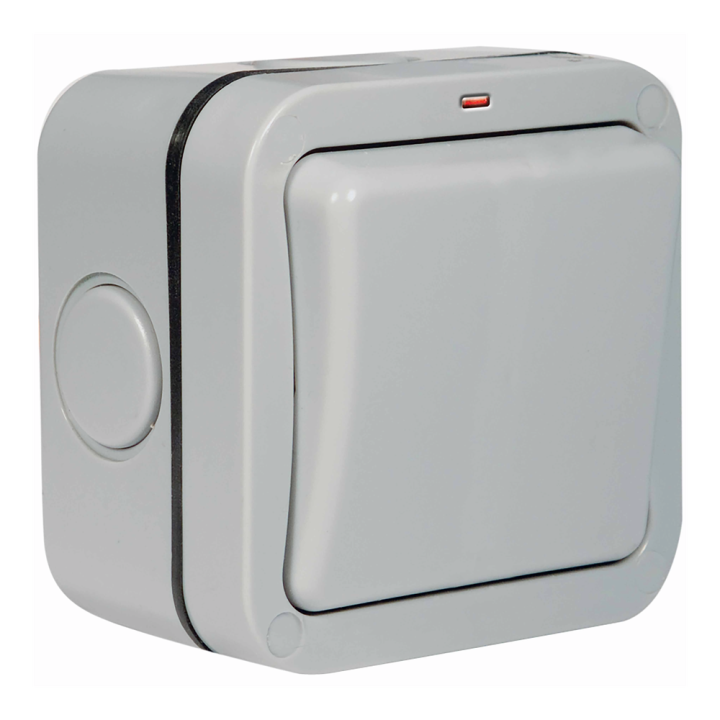

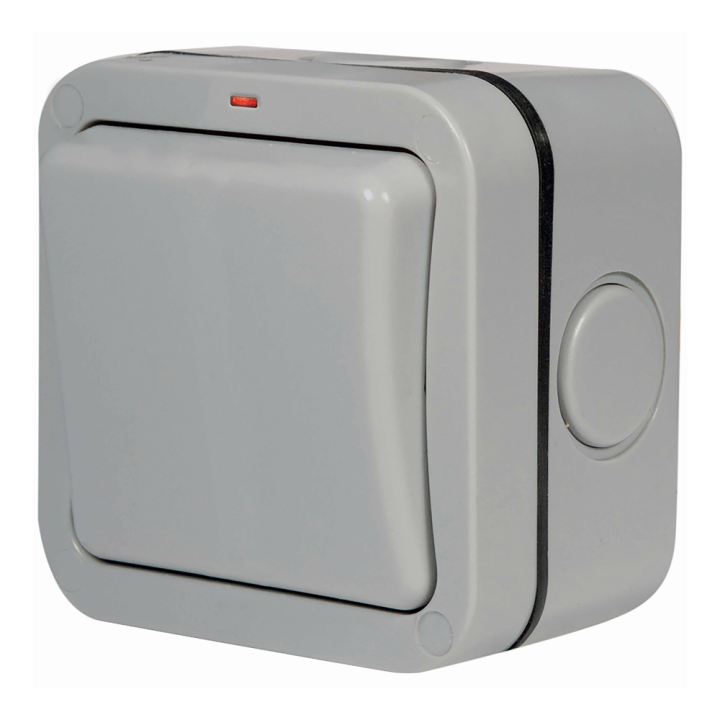

BG WP12 20A 1-GANG 2-WAY WEATHERPROOF SWITCH IP66

The BG WP12-02 is a 20A, one-gang, two-way switch with an IP66 rating, suitable for protecting a potentially dangerous electricity supply in the most arduous of conditions.

Features:

• 20A, one-gang, two-way
• 20 AX inductive rated
• Clearly marked terminals with backed out captive screws for easy installation
• Covers to seal the fixing screws
• Earth terminal in mounting box
• All cable entries in the four sides have removable blanking caps
• Housing will accept alternative switch modules from the BG Grid range
• Neon indicator that can be wired to illuminate when off or on depending on wiring blanking caps

Specifications:

• Rating: 20A, 250V~ (20 AX - no derating for inductive or fluorescent loads)
• Switch type: Single-pole
• Contact gap: 3 mm minimum
• Terminal capacity: 4 x 1 mm², 4 x 1.5 mm², 2 x 2.5 mm², 1 x 4 mm²
• IP rating: IP66
• Number of cable entries: 5 x 20 mm, one in each of three sides and two in the remaining side, one drill-out entry 20 mm / 25 mm in rear face
• Size: 91 mm x 91 mm x 66 mm
• Standards: BS EN 60669-1
