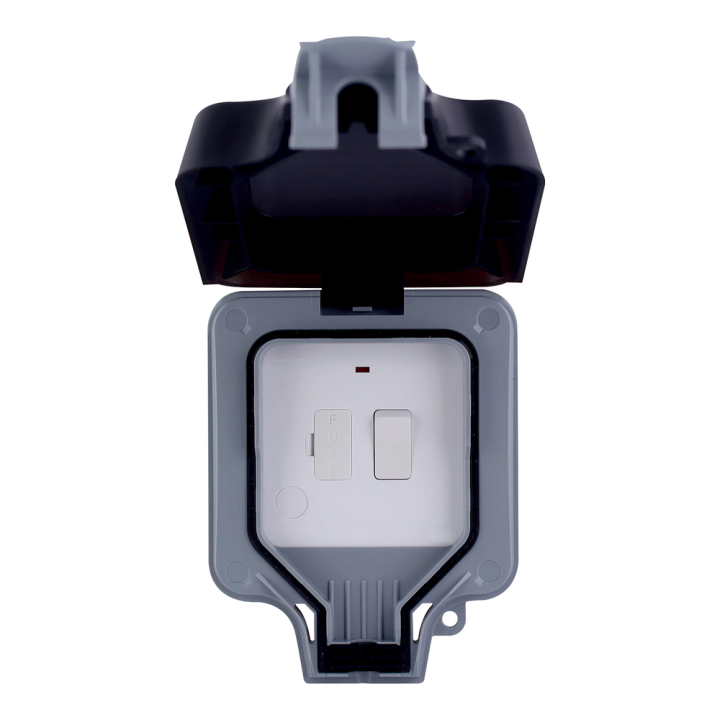

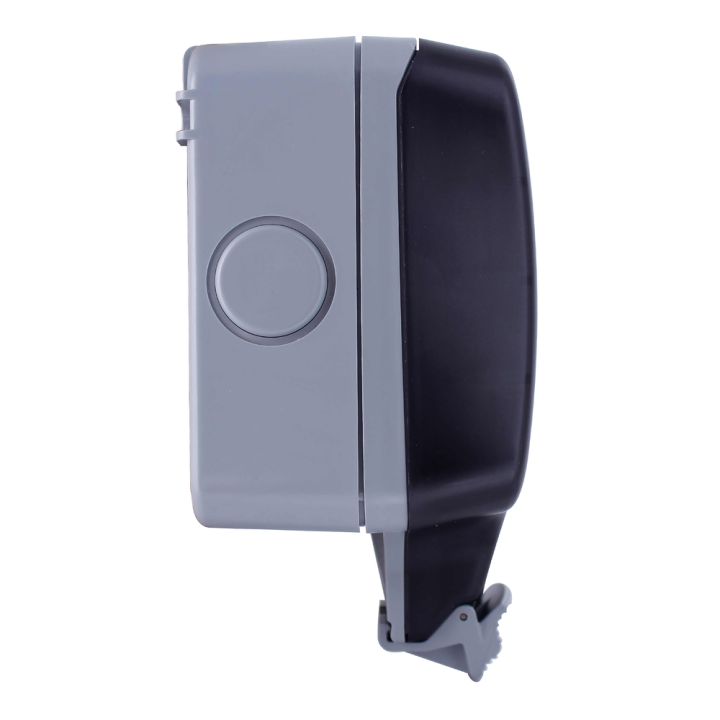

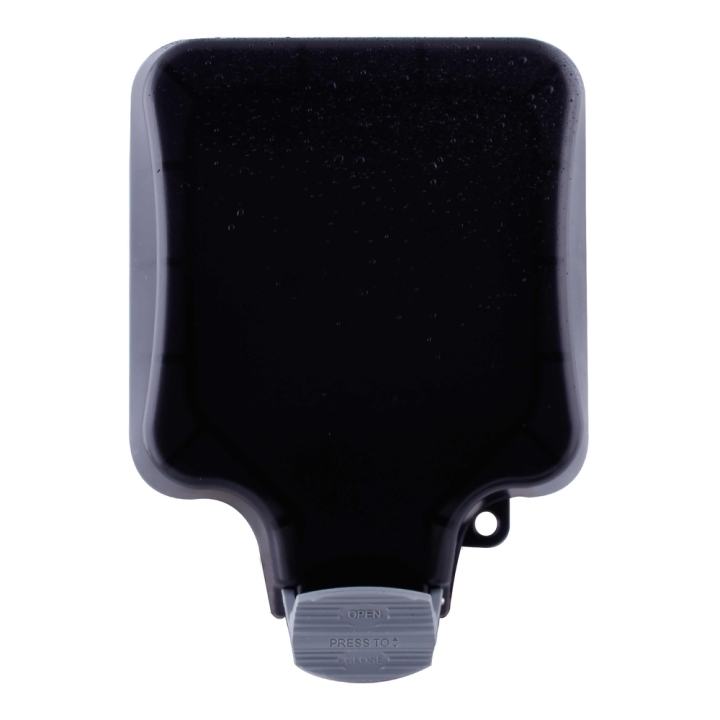

BG WP53 13A WEATHERPROOF FUSED SPUR SWITCHED + NEON IP66 images
BG WP53 13A WEATHERPROOF FUSED SPUR SWITCHED + NEON IP66
The BG WP53 is a 13A, switched fused outdoor connection unit with an IP66 rating, suitable for protecting against water and dust ingress in the most arduous of conditions.
The BG WP53-01 is a 13A, switched fused outdoor connection unit with an IP66 rating, suitable for protecting against water and dust ingress in the most arduous of conditions.
Features:
- 13A fused spur, switched
- IP66 rated, weather & dust protection - high level of protection against ingress from water jets & dust
- Angled colour-coded terminals with captive screws
- Ergonomic front cover / lid
- Bright LED power indicator visible through see-through cover
- Lockable hinged cover has simple press to open / press to close operation
- Multiple gland entry positions - five versatile entry options with M25 capability, easy push-out blank plug design
- One drill out 20 mm / 25 mm entry in rear face
- Robust construction - polycarbonate housing, high impact resistance
- Long lasting, will not crack or fade
Specifications:
- Rating: 13A 250V~
- Terminal capacity: 3 x 2.5 mm², 2 x 4 mm², 1 x 6 mm²
- Standards: BS 1363 Part 4
-
ReferenceBGWP53
