Red_Interlocked_Socket_Outlet

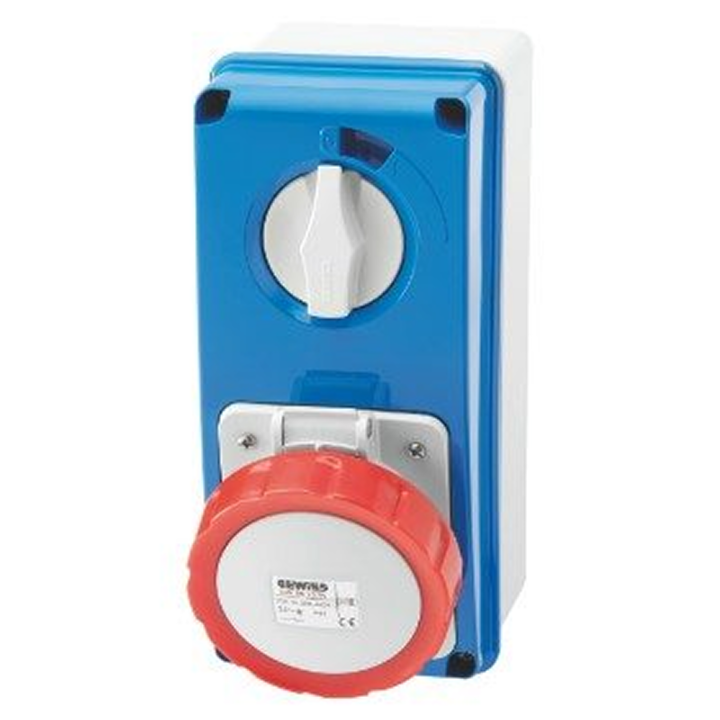

400V 16A 3P+N SWITCHED INTERLOCKED SOCKET RED VERTICAL IP67

380V to 415V 3P+E 16A vertical fixed interlocked socket outlet, with bottom, without fuse holder base, IP67. Industrial-type socket-outlets conforming to IEC 309 Standard, with mechanical interlock consisting of a circuit breaker enabling the plug to be connected and disconnected only in the open position, and the switch to close only with the plug inserted.

380V to 415V 3P+E 16A vertical fixed interlocked socket outlet, with bottom, without fuse holder base, IP67. Industrial-type socket-outlets conforming to IEC 309 Standard, with mechanical interlock consisting of a circuit breaker enabling the plug to be connected and disconnected only in the open position, and the switch to close only with the plug inserted.

Specifications:

  • Amperage: 16A
  • Rated voltage: 380V to 415V
  • IP rating: IP67
  • IK rating: IK08
  • Number of poles: 4 (3P + E)
  • Frequency: 50 Hz /60 Hz
  • Colour: Red
  • Size: 220 mm x 103 mm x 151 mm

  • Reference
    P17415V16A4PSSI
