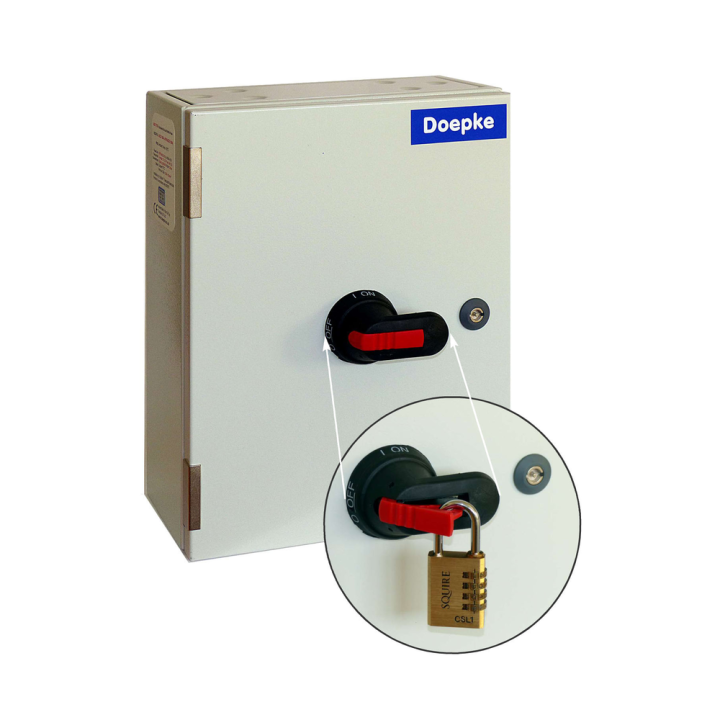

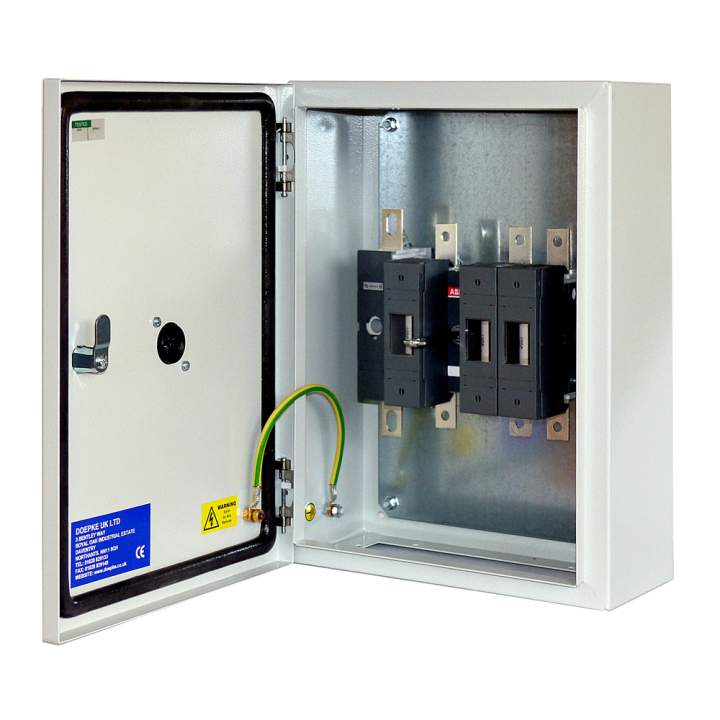

ASF-30-20 20A TP+N S/FUSE

This 20A 3-pole enclosed switch-fuse features 2 x BS 88 fuse links and 1 x neutral link (unswitched). Applicable for main incoming distribution supplies and branch feeder circuits. Suitable for on-load switching and isolation in TN-C-S and TN-S systems.

Features:

• Material: Powder coated steel
• Gland plates, top and bottom
• Padlockable door interlocked handle
• Wall mountable

Specifications:

• Size: 305 mm x 305 mm x 150 mm
• Cable CSA: 2.5 mm²
• Number of poles: 3-pole
• Amperage: 20A
• Voltage: 415V AC
• IP rating: IP65
• Standard: EN 60947-3
