LUXOMAT PD3N-1C-FC [92196] FLUSH CEILING PIR SWITCH

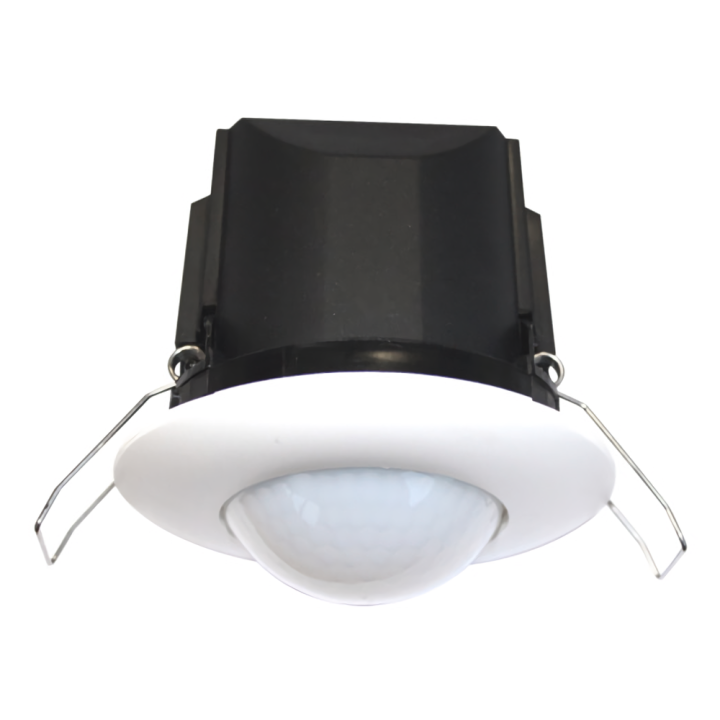

B.E.G. Luxomat PD3N-1C-FC flush ceiling mounted infrared presence / motion detector.

B.E.G. Luxomat PD3N-1C-FC flush ceiling-mounted infrared presence / motion detector.

Remote control-capable ceiling motion detector
One channel for light switching
Special optical system for detection of even the smallest movements
Uninterrupted parallel circuit detection of several detectors
Manual switching via push-button possible
Additional functions can be set up using the optional remote control.
Factory settings 10 min. and 500 lux
Typical applications: monitoring of smaller areas like stairwells, private garages, galleries, wash rooms

Model: 92196
Voltage: 110V to 240V AC, 50 Hz / 60 Hz

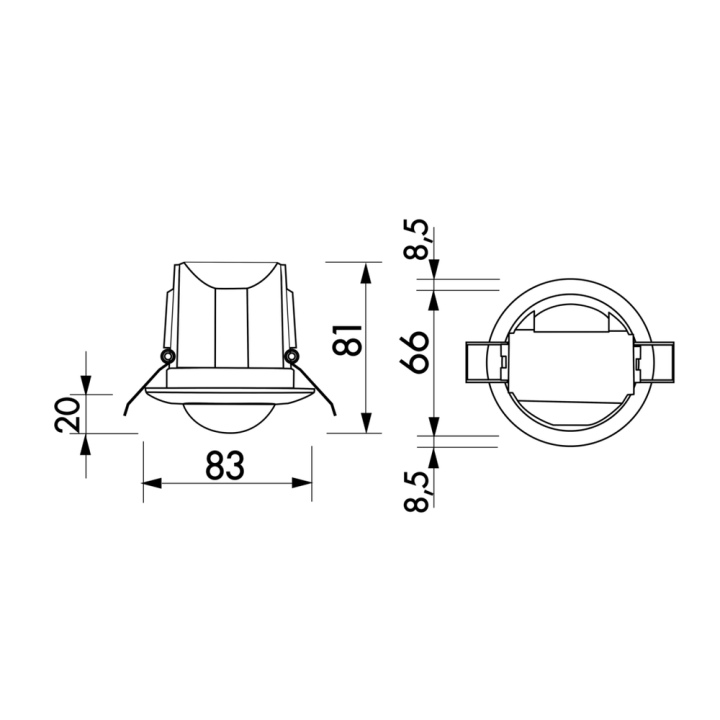

Size: Ø 83 mm x 81 mm
Power consumption: Approx. 0.5W
Detection area: Vertical 360°

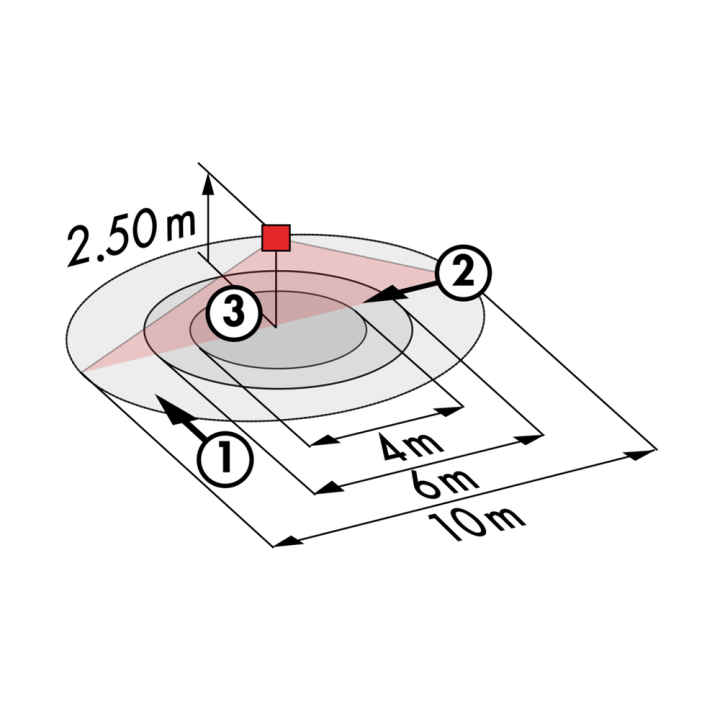

Range: Max. Ø 10 metres across, max. Ø 6 metres towards, max. Ø 4 metres seated
Monitored area (tangential movement): 79 m², 2.5 metres mounting height
Mounting height: 2 metres min., 5 metres max., 2.5 metres recommended
Degree / class of protection: IP23, class II
Ambient temperature: -25 °C to 50 °C
Housing: Polycarbonate, UV-resistant
Switching power (ohmic load): 2,300W, cos φ = 1
Switching power (inductive load): 1,150 VA, cos φ = 0.5
Switching power (LED): 300W LED, max. inrush current Ip (20 ms) = 165A, max. inrush current Ip (200 µs) = 800A
Type of contact: 1 x µ-contact, N/O contact with tungsten pre-make contact
Follow-up time: 15 sec. to 30 min., pulse
Switch-on threshold: 10 to 2,000 lux
