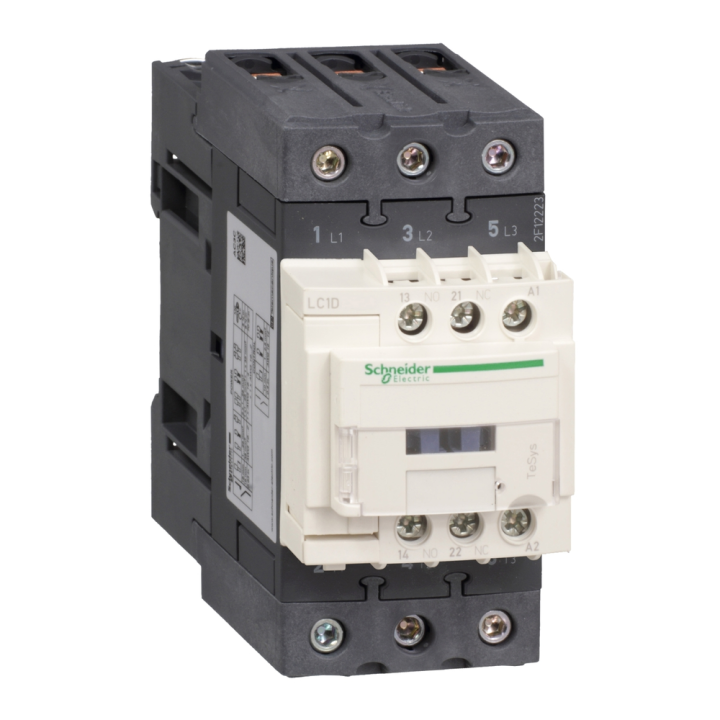

SCHNEIDER LC1D50AF7 110V AC 50A CONTACTOR

This 3 NO, 110V AC, 50A contactor is a switch used for switching an electrical power circuit.

Specifications:

• Voltage: 110V AC
• Amperage: 50A
• Auxiliary contact composition: 1 NO + 1 NC
• Size: 120 mm x 122 mm x 55 mm
• IP rating: IP20 conforming to IEC 60529
• Motor Power kW: 15 kW at 220...230 V AC 50/60 Hz (AC-3)
• Motor Power kW: 22 kW at 380...400 V AC 50/60 Hz (AC-3)
• Motor Power kW: 30 kW at 500 V AC 50/60 Hz (AC-3)
• Motor Power kW: 33 kW at 660...690 V AC 50/60 Hz (AC-3)
• Motor Power kW: 25 kW at 415 V AC 50/60 Hz (AC-3)
• Motor Power kW: 30 kW at 440 V AC 50/60 Hz (AC-3)
• Motor Power kW: 11 kW at 400 V AC 50/60 Hz (AC-4)
