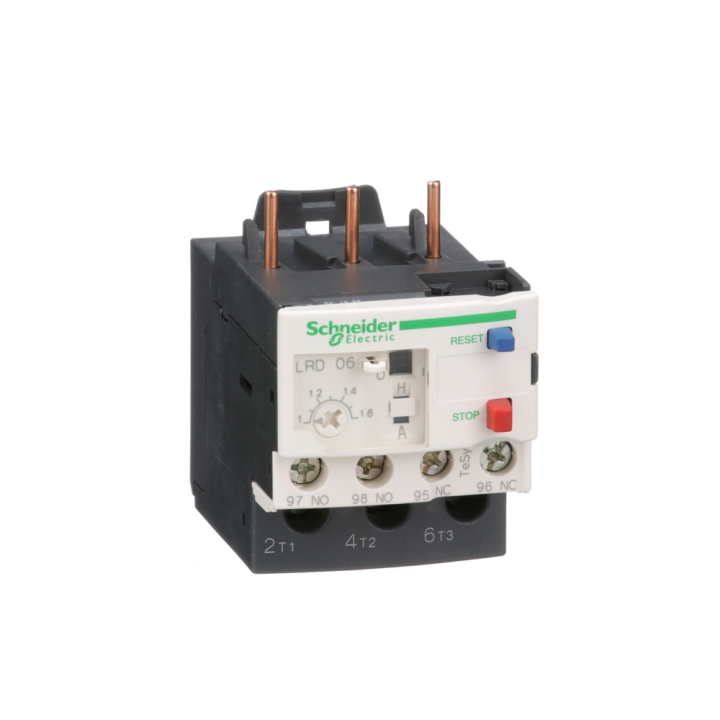

Differential Thermal Overload Relay LRD06

SCHNEIDER LRD06 1-1.6A OVERLOAD

This 1A to 1.6A differential thermal overload relay is used for preventing motor damage by monitoring the current in the circult of the motor and breaking the circuit when an electric overload or phase failure is detected.

This 1A to 1.6A differential thermal overload relay is used for preventing motor damage by monitoring the current in the circult of the motor and breaking the circuit when an electric overload or phase failure is detected.

Specifications:

  • Amperage: 1A to 1.6A
  • Voltage: 600V
  • Poles: 1 NO + 1 NC
  • Size: 70 mm x 66 mm x 45 mm
  • IP rating: IP20 conforming to IEC 60068

  • Reference
    TELRD06
