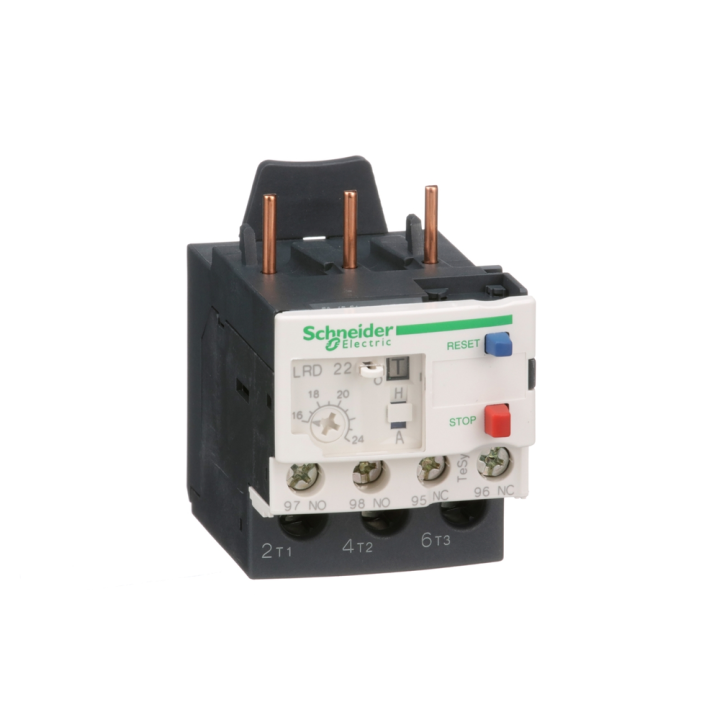

Differential Thermal Overload Relay LRD22

SCHNEIDER LRD22 17-25A OVERLOAD

This 16A to 24A differential thermal overload relay is used for preventing motor damage by monitoring the current in the circult of the motor and breaking the circuit when an electric overload or phase failure is detected.

This 16A to 24A differential thermal overload relay is used for preventing motor damage by monitoring the current in the circult of the motor and breaking the circuit when an electric overload or phase failure is detected.

Specifications:

  • Amperage: 16A to 24A
  • Voltage: 600V
  • Poles: 1 NO + 1 NC
  • Size: 70 mm x 66 mm x 45 mm
  • IP rating: IP20 conforming to IEC 60068

  • Reference
    TELRD22
