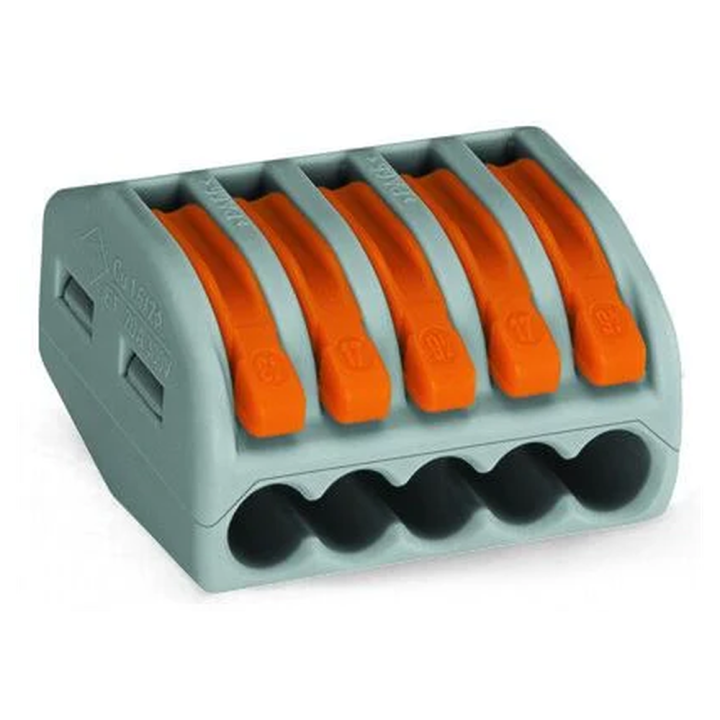

WAGO 222-415 5-POLE 32A LEVER CONNECTOR (40)

32A 5-pole lever connector, up to 2.5 mm² wire, for all conductor types. Ease of use with lever by simply pulling lever up, inserting conductor and pushing the lever back down.

Sold as boxes of 40.

Features:

• Ease of use, time-saving solution with its lever action
• Easily terminate conductors from 0.08 mm² to 2.5 mm²
• Connect solid, stranded and fine-stranded conductors

Specifications:

• Amperage: 32A
• Poles: 5-pole

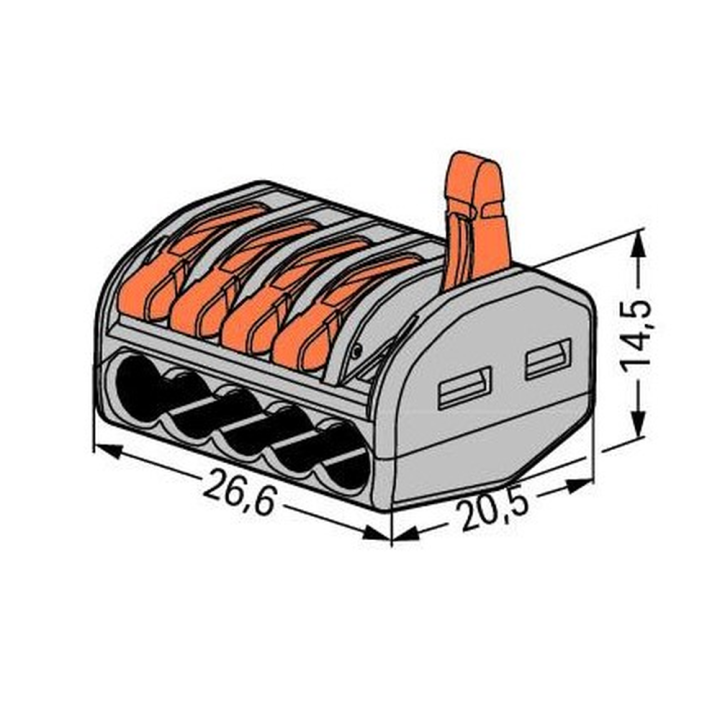

• Size: 14.5 mm x 20.5 mm x 26.6 mm
• Connection technology: Cage clamp
• Connectable conductor materials: Copper
• Surrounding air temperature (operation): 40°C
