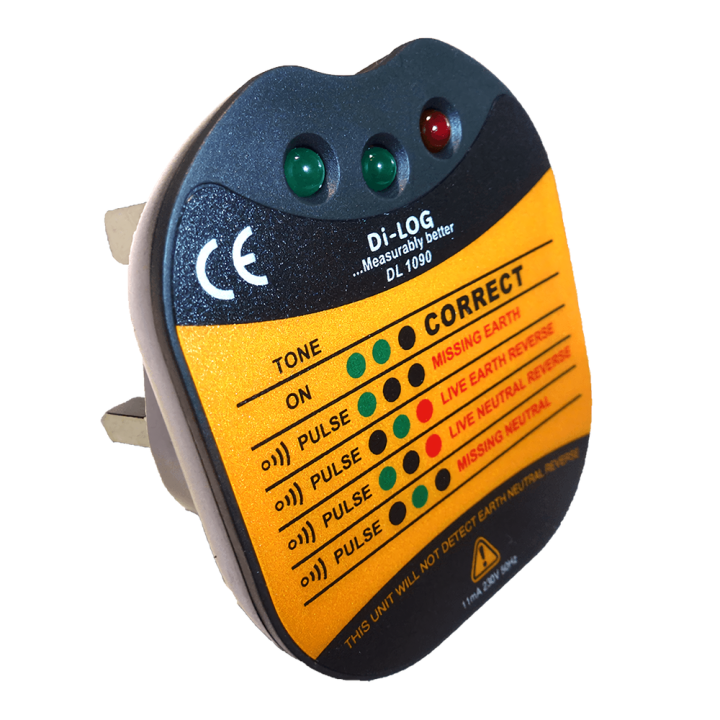

DI-LOG DL1090 SOCKET TESTER + BUZZER

The Di-LOG DL1090 is a very simple socket tester to check the correct polarity of a 13A UK socket. The DL1090 has a simple three LED indication accompanied with an audible buzzer for clear correct polarity.

Features:

• Audible and visual indication of wiring status
• LED indication of a wide range of wiring conditions
• Designed to BSEN 61010
• IP30 rated
• 230V AC mains powered

Specifications:

• Measurement - Operational voltage: 230V AC
• Measurement - Polarity fault combinations: Correct Polarity, Missing Earth, Live Earth Reverse, Live Neutral Reverse, Missing Neutral
• Power supply: 230V AC
• Dimensions: 68 mm x 60 mm x 56 mm
