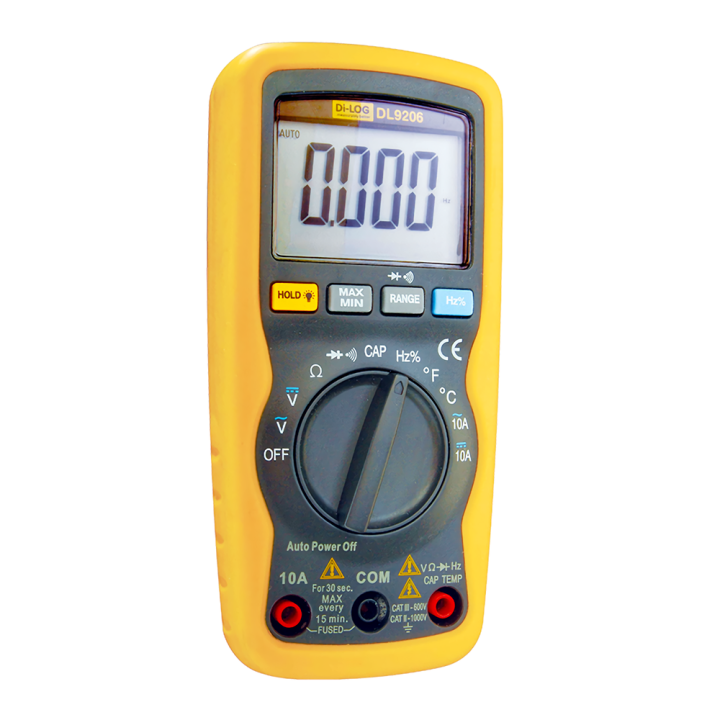

DI-LOG DL9206 COMPACT AUTO RANGING 1000V MULTIMETER

The Di-LOG 9206 is a compact auto-ranging digital multimeter with LCD display capable of making current, voltage, resistance, continuity, diode, capacitance, frequency, duty cycle, and temperature measurements.

Features:

• Large back lit LCD display
• Auto power off
• Data hold
• 6,000 counts LCD display
• AC voltage to 750V
• DC voltage to 1,000V
• AC & DC current to 10A
• Resistance to 60 MΩ
• Capacitance from 10 pF
• Diode measurement

Specifications:

• AC voltage: 1.0 mV to 750V
• DC voltage: 0.1 mV to 1000V
• AC / DC current: 1 mA to 10A
• Resistance: 0.1Ω to 60 MΩ
• Capacitance: 10 pF to 4,000 µF
• Frequency: 0.001 Hz to 2.999 MHz
• Temperature: -20 °C to 760 °C
• Diode test: 0.3 mA typical 1.5V DC
• Power supply: 1 x 9V battery (MN1604, PP3)
• Size: 150 mm x 70 mm x 48 mm
• Standards: EN61010-1, CATIII 600V
