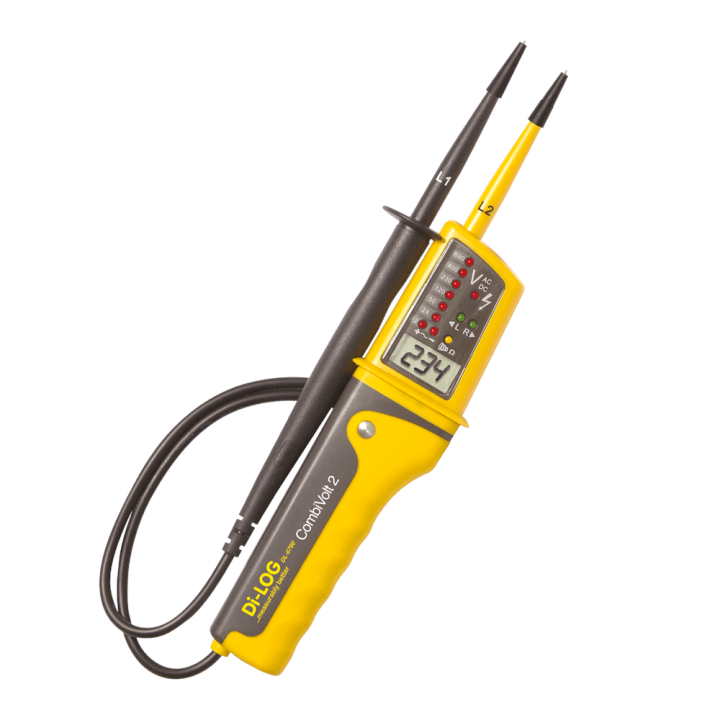

DI-LOG DL6790 COMBIVOLT2 VOLTAGE / CONTINUITY TESTER DIGITAL

The Di-LOG DL6790 CombiVolt 2 is a three-in-one tester (voltage, continuity and phase rotation) with a digital LCD screen and a rugged, ergonomically formed housing for perfect handling.

Features:

• Testing of AC / DC voltages from 12V to 690V AC / DC
• LCD screen for digital indication of voltage
• Continuity testing with optical and acoustic indication
• Automatic switching between voltage and continuity
• Phase rotation test system
• Single pole phase indication
• Fully compliant with GS38
• Fully operational voltage indication even when batteries are discharged
• Digital indication of voltage
• Will not trip any RCD when testing across Live and Earth
• Single pole detection when L2 probe connected above 100V

Specifications:

• Voltage display: 12V to 690V AC / DC
• LED resolution: 12V, 24V, 50V, 120V, 230V, 400V, 690V
• LCD resolution: 1V ± 3% + 8 digits
• Voltage detection: Automatic
• Acoustic signal: AC voltage - DC voltage
• Polarity detection: Full range
• Response time: LED < 0.1s, LCD < 2s
• Frequency range: 0 Hz to 400 Hz
• Peak current: Is < 0.3A / Is (after 5s) < 3.5 mA
• Operation time: 30s
• Recovery time: 10 min.
• Auto power on: < 12V AC / DC
• Single pole voltage detection, voltage range: 100V to 690V AC
• Single pole voltage detection, frequency range: 50 Hz to 400 Hz
• Continuity, measuring range: 0&ohm; to 400 K&ohm;
• Phase rotation test, voltage range: 100V to 690V
• Phase rotation test, frequency: 45 Hz to 65 Hz
• Over voltage protection: 690V AC / DC g
• Power supply: 2 x 1.5V batteries (AAA, LR03, MN2400)
• Size: 255 mm x 70 mm x 28 mm
• Standards: CAT IV 600V, IEC 60529 (IP65), 61243-3, EN61010-1:2010, EN61010-2-033:2010, EN61010-031:2002+A1:2008, IEC 61243-3:2009, EN61243-3:2010, EN61243-3:2014 & EN61326-1
