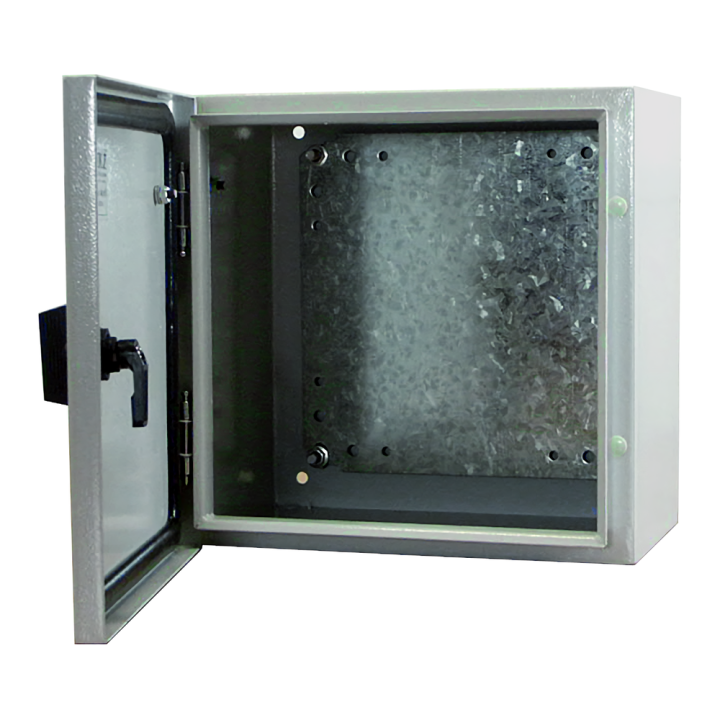

STB303015 300x300x150mm ENCLOSURE + BACKPLATE

The Europa STB303015 is an epoxy coated steel enclosure, with dimensions of 300 mm x 300 mm x 150 mm.

Features:

• Earth studs included
• IP65 to EN60 529 NEMA4 (when fitted & sealed)
• Top & bottom gland plates
• Fixing brackets available
• Galvanised back plate included
• Strong steel (powder epoxy coated)
• Body and door RAL7035 (textured finish)
• Mounting plate in galvanized zinc steel sheet
• Body and door manufactured in 1.2 mm to 1.5 mm sheet steel
• Gland plate manufactured in 2.0 mm to 2.5 mm sheet steel
• Enclosure coated with standard cycle thermosetting epoxy polyester powder

Specifications:

• External dimensions: 300 mm x 300 mm x 150 mm
• Internal depth (from mounting plate): 125 mm
• Gland plate hole: 180 mm x 62 mm
• Mounting plate: 240 mm x 240 mm
• Locks: 1
