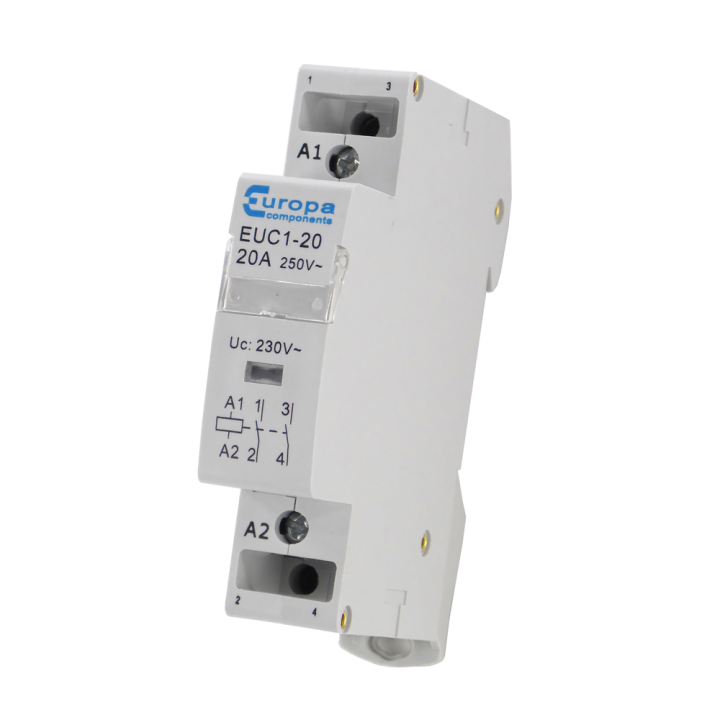

EUC1-20-2P 20A CONTACTOR 2-POLE 230V AC COIL NO

The Europa EUC1-20-2P is a 20A, 2-pole modular contactor (DIN rail mounting), normally open (N/O) with a 230V AC coil.

Specifications:

• Rated current: 20A
• Number of poles: 2
• Rated insulation voltage: 400V AC
• Rated operating voltage: 240V AC
• Rated operating current AC1: 20A
• Rated operating current AC3: 9A
• Rated power AC1: 4 kW
• Rated terminal capacity: 1.5 mm² to 10 mm²
• Rated terminal capacity (coil): 0.75 mm² to 2.5 mm²
• Width: 18 mm
• Mounting: 35 mm DIN rail
