Inductive Proximity Sensor 4

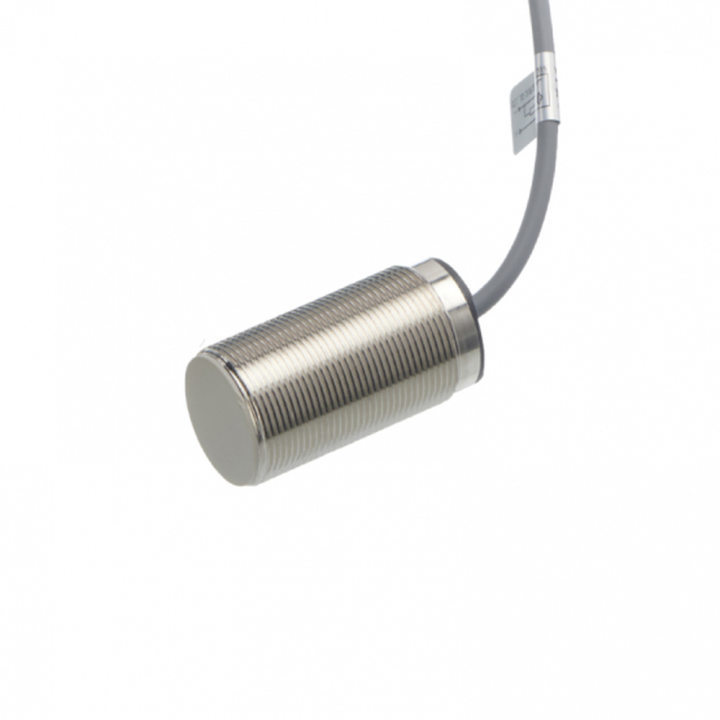

ECM30I M30 10mm IP67 FLUSH INDUCTIVE PROXIMITY SENSOR

This flush M30 x 10 mm inductive proximity sensor operate from a 10V to 30V DC supply and incorporate a 'target-sensed' LED indicator. The PNP N/O output stage has a maximum load current of 200mA. Suitable for a wide range of applications detecting ferrous targets (such as mild steel).

This flush M30 x 10 mm inductive proximity sensor operate from a 10V to 30V DC supply and incorporate a 'target-sensed' LED indicator. The PNP N/O output stage has a maximum load current of 200mA. Suitable for a wide range of applications detecting ferrous targets (such as mild steel).

Features:

  • Finish: flush
  • Housing material: Nickel plated brass
  • Surge, reverse polarity and short-circuit protection
  • Robust and long life
  • Reduced downtime and maintenance costs
  • More sensitive to current than fuses

Specifications:

  • Thread size: M30 x 10 mm
  • Cable length: 2M
  • IP rating: IP67
  • Output: PNP N/O
  • Ambient temperature: -25° to 70°

  • Reference
    EURSENS04
