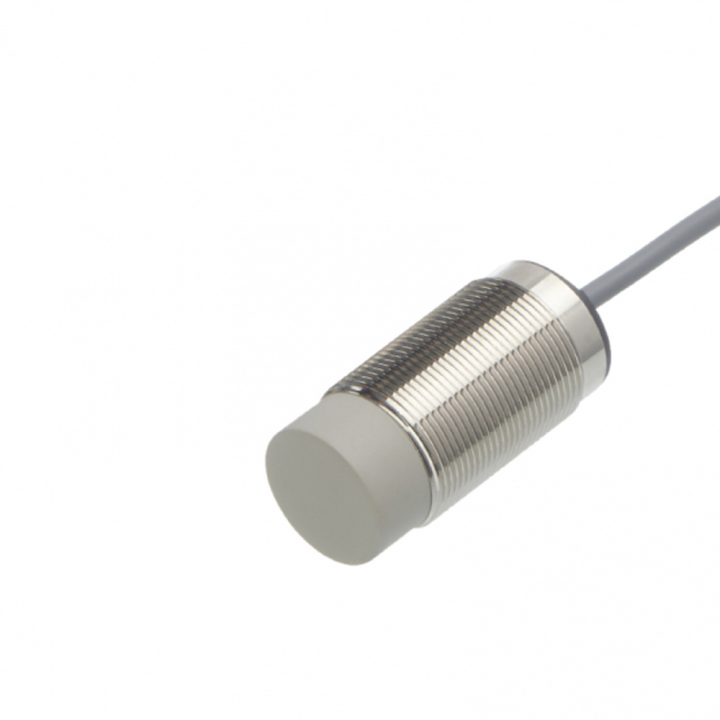

ECM30I M30 15mm IP67 NON-FLUSH INDUCTIVE PROXIMITY SENSOR

This non-flush M30 x 15mm inductive proximity sensor operate from a 10V to 30V DC supply and incorporate a 'target-sensed' LED indicator. The PNP N/O output stage has a maximum load current of 200mA. Suitable for a wide range of applications detecting ferrous targets (such as mild steel).

Features:

• Finish: non-flush
• Housing material: Nickel plated brass
• Surge, reverse polarity and short-circuit protection
• Robust and long life
• Reduced downtime and maintenance costs
• More sensitive to current than fuses

Specifications:

• Thread size: M30 x 15mm
• Cable length: 2M
• IP rating: IP67
• Output: PNP N/O
• Ambient temperature: -25° to 70°
