SCHNEIDER A9F54132 SP 32A C MCB

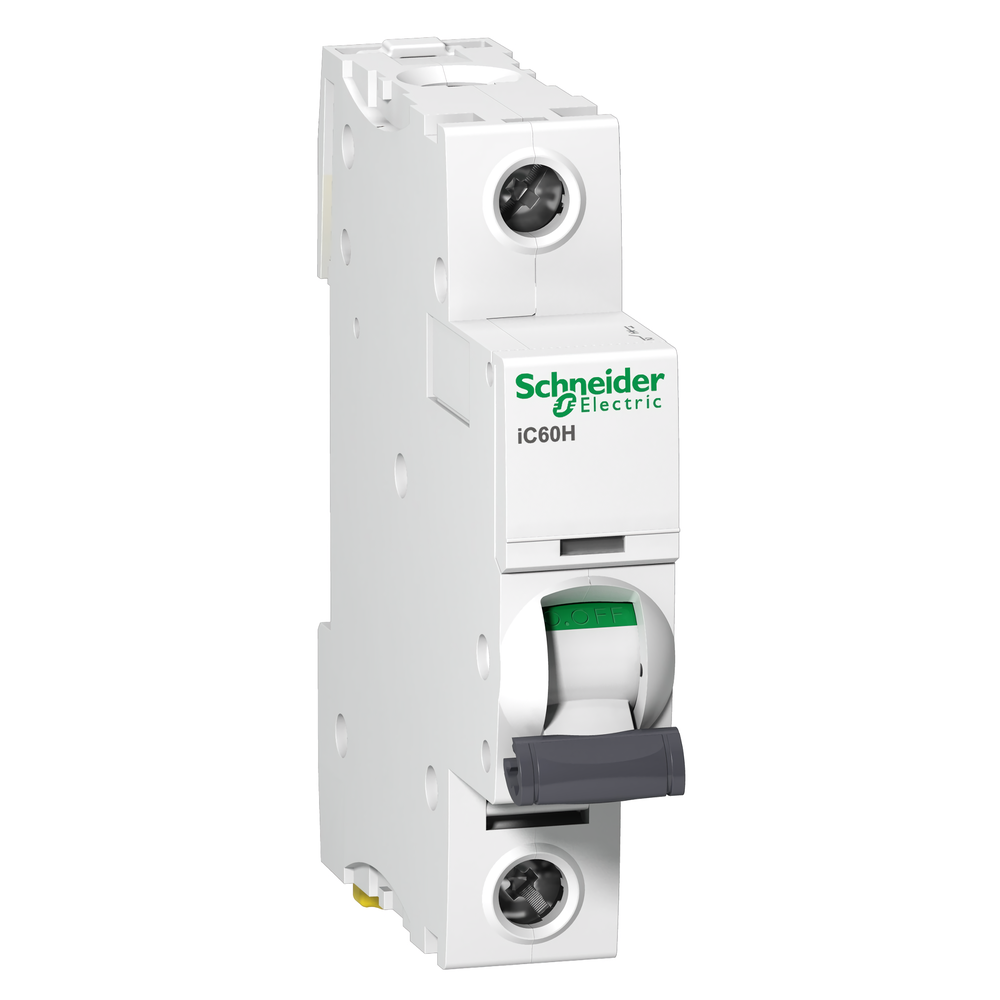

The Schneider Acti 9 iC60H A9F54132 is a 32A, single-pole, C-type miniature circuit breaker (MCB) with a short-circuit capacity of 10 kA.

Specifications:

• Characteristic curve: C
• Rated current: 32A
• Rated voltage: 230V AC
• Rated frequency: 50 Hz / 60 Hz
• Number of poles: 1
• Rated short circuit capacity: 10 kA
• Operating temperature: -35 °C to 70 °C
• Mounting: DIN rail
• Terminal capacity: 1 mm² to 25 mm²
• Size: 85 mm x 78.5 mm x 18 mm
• Standards: EN/IEC 60947-2, EN/IEC 60898-1
