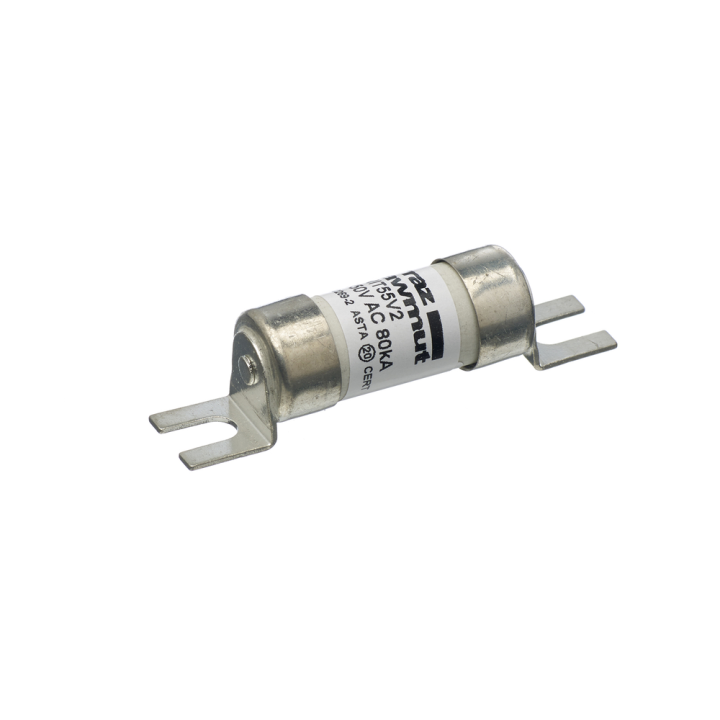

NIT20M32 32A 550V BS88 A1 MOTOR RATED FUSE OFFSET/44.5mm FC

20M32 NIT M fuse with a fixing centre. Motor-rated, for heavy machinery use. With a breaking capacity of 80 kA and voltage of 550V.

Features:

• Motor-rated fuse; for use where motors start-up currents are higher than the maximum continuous current. The first current is the continuous current, where the second one is the motor starting current.

Specifications:

• Size: 56 mm x 13.5 mm
• Fixing centre: 44.5 mm
• Amperage: 20M32
• Rated voltage: 550V
• Compliant with: BS 88

Applications:

• NIT M fuses are for use in industrial installations and can be fitted into BS 88 bolted fuse-holders and distribution fusegear.
