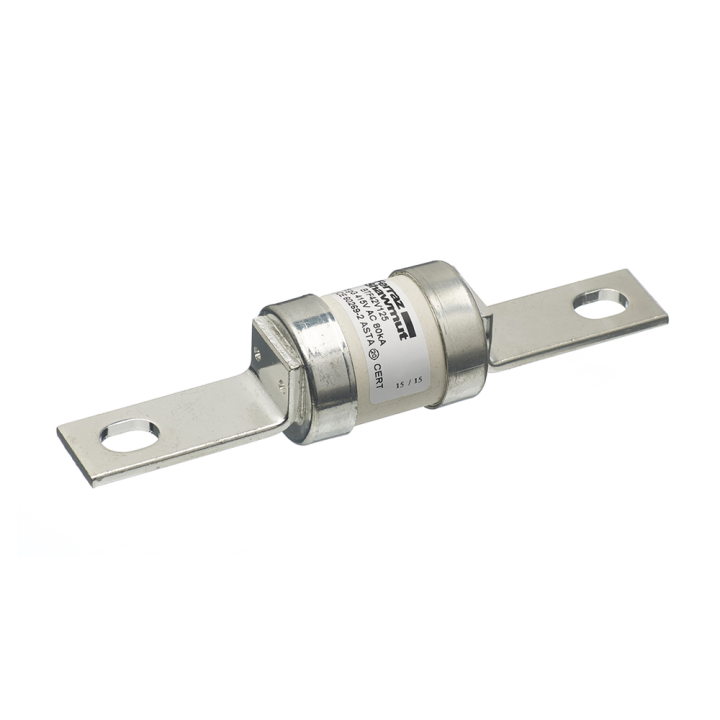

TF200M250 200A/250A 415V BS88 B2 MOTOR RATED FUSE C/111mm FC

200A TF M fuse with a fixing centre. Motor-rated, for heavy machinery use. With a breaking capacity of 80 kA and voltage of 415V.

Features:

• Motor-rated fuse; for use where motors start-up currents are higher than the maximum continuous current. The first current is the continuous current, where the second one is the motor starting current.

Specifications:

• Size: 136 mm x 31 mm
• Fixing centre: 111 mm
• Amperage: 200A
• Rated voltage: 415V
• Compliant with: BS 88

Applications:

• TF M fuses are for use in industrial installations and can be fitted into BS 88 bolted fuse-holders and distribution fusegear.
