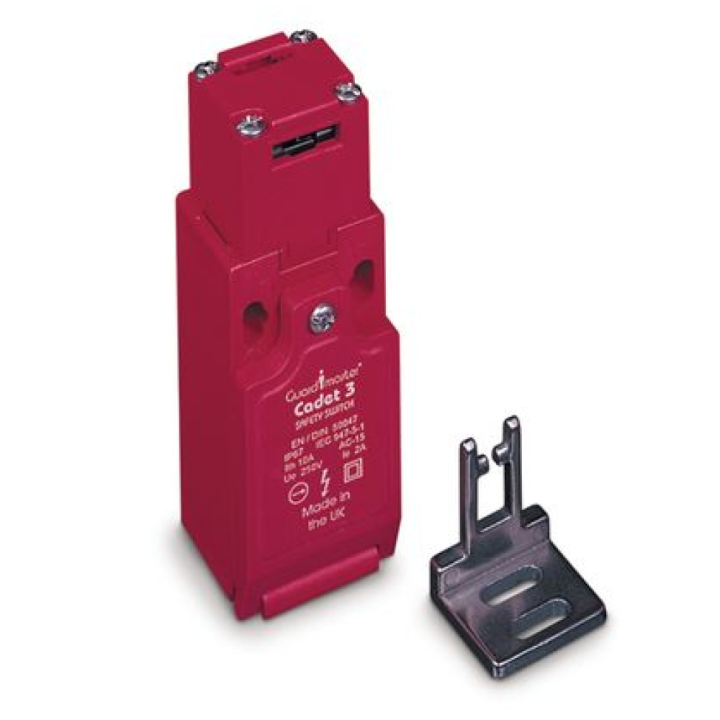

G/MASTER440K-C21061 CADET3 2NC1NO 6PIN TONGUE SW 90deg M16

Guardmaster 440K cadet 3 90° safety-rated interlock switch, 2 NC + 1 N0, keyed actuator included. This interlock switch has a compact housing with fixing centres, offering ease-of-mounting. It can be operated by inserting a specially profile stainless-steel key which is permanently fixed to the guard door. This switch has a break before make action (opens the first set of contacts before closing new contacts) and it features 2 NC safety contacts and 1 NO auxiliary. It is comprised of durable UL approved glass filled PBT.

Features:

Simplified mounting due to industry standard fixing centers to DIN 50047
Forced guided contacts
Perfectly suited for use with small, lightweight guards, particularly useful for light duty sliding and small radii hinged machine guards (60mm or 2.36in) due to semi-flexible key
Dual entry and rotational head, eight possible actuator entry points, easy to install
