GUARDMASTER 440N-G02123 ST/STL FRS21GD2 DC 2N/C 1N/O x3M

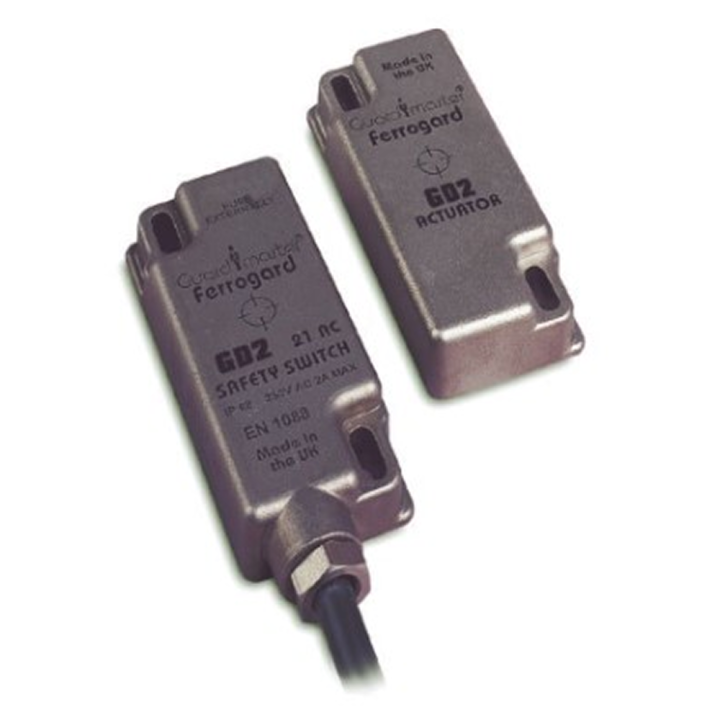

Guardmaster 440N ferrogard magnetic non-contact switch, 24V DC, 2 NC + 1 NO, 3M cable, stainless steel housing. They are specially designed so that when a guard door is opened the magnetic actuator is removed from the switch, and this action opens the N.C. safety contacts so that power to the machine is cut off. The Ferrogard range of magnetically actuated safety switches provide the reliability of non-contact switches, combined with greater tolerance to door misalignment, to keep your operations running smoothly.
Features:
- Stainless steel housing adds extra protection against impacts to the housing (IP68)
- Safety contacts operating distance: make 12mm, break 23mm
- Wide temperature range between -25°C and 125°C, making this switch useful for a larger range of applications
Specification:
- Housing material: Stainless steel
- Actuator type: Magnetic
- Connection type: 3M cable
- Voltage: 24V DC
- Poles: 2 N.C + 1 N.O
- IP rating: IP68
-
ReferenceGM440NG4
